690-VET Laptop Full Digital Veterinary Ultrasound Diagnostic Instrument
690-VET
690-VET is based on the new ARM architecture.
Application:
To meet the basic hospital in the abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, vascular, and other aspects of the examination and diagnosis.
Product Features:
* Lithotripsy positioning function: displaying the median line, allowing measurement and positioning operation
* With puncture guidance function
* M speed adjustment, dynamic range, scan angle, frame correlation
* Tissue harmonics
* Various image processing functions such as line correlation, pseudo-color
* Display modes: B, B+B, B+M, M, 4B
* Cine loop ≥ 256 frames
* Image storage ≥ 300, external USB storage, more convenient for image upload
* Automatic image freezing, screensaver settings
* Automatic parameter saving and one-key parameter restoration function
* A wide range of specialist measurement data packages
Intelligent operation:
* Image presetting: This machine combines a lot of clinical experience, and has different preset adjustment conditions for different parts or organs examined by different departments and has a key optimization function
* Image magnification
* Report function: Hospital standard report form page setting, can input patient, veterinarian , diagnosis result and other information, automatically import the selected diagnosis picture and examination measurement data
* One key to find the saved images, can be quickly found according to the date named folder
* Automatic memory and generation function for obstetric measurement data
* Backlit silicone keyboard, comfortable and wear-resistant, no more trouble in the dark room
* One key restoration of parameters

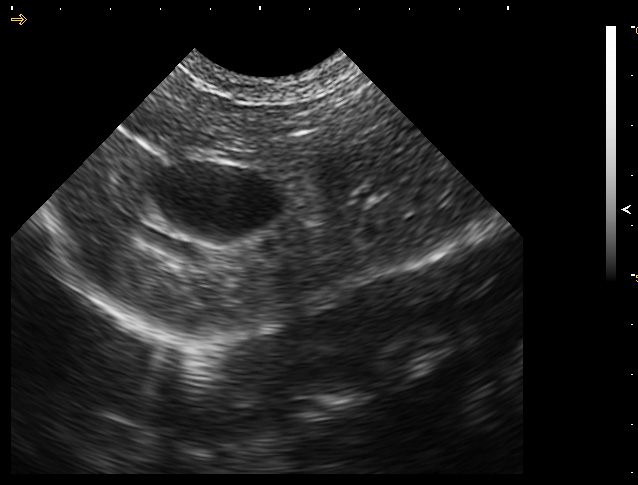

dog’s liver

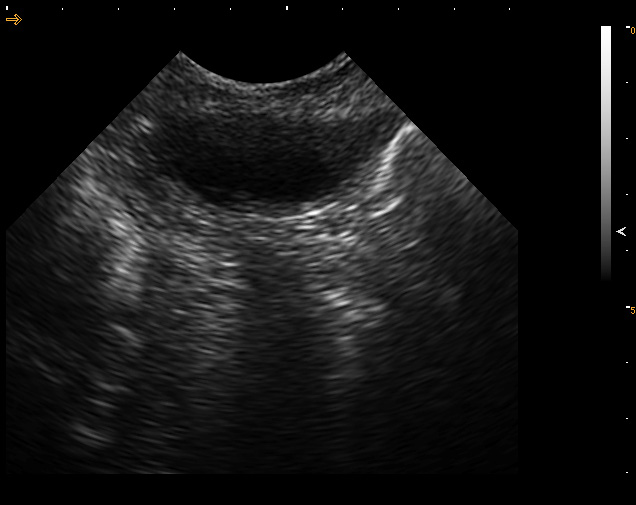

dog’s bladder

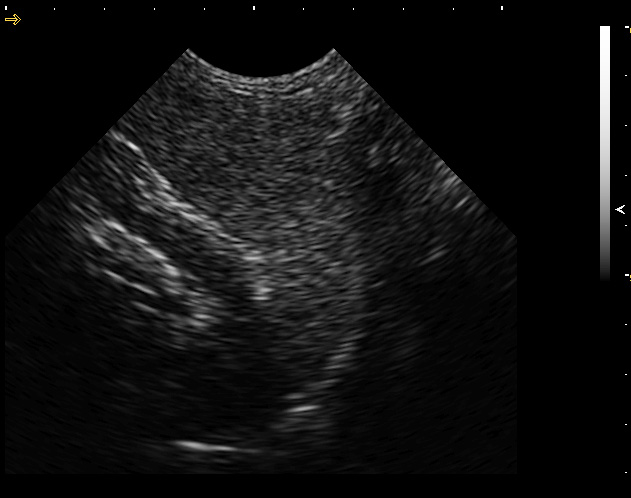

dog’s spleen

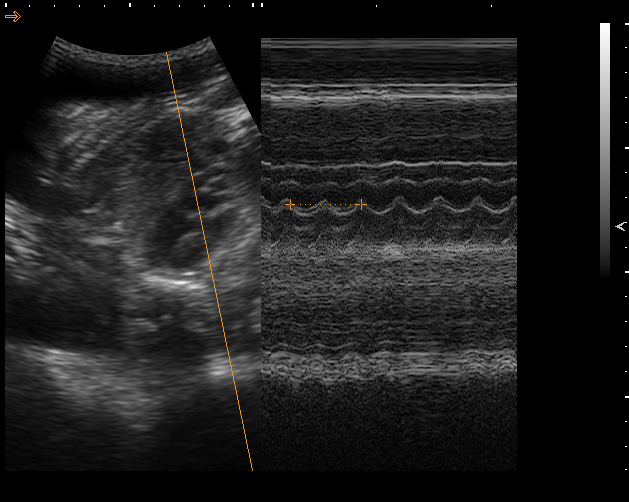

M mode HR measurement
Convex array probe (C2-5 R60) : the frequency of 2.0 MHz / 3.0 MHz / 3.5 MHz / 5.0 MHz /, four variable frequency, center frequency is 3.5 MHz, each period of frequency conversion are corresponding to the corresponding harmonic frequency (depth adjustment: 19 levels above, the adjusting range 50-240 mm)
Linear array probe (L5-9 L40) : the frequency of 5.0 MHz / 7.5 MHz / 8.0 MHz / 9.0 MHz, four variable frequency, center frequency is 7.5 MHz, each period of frequency conversion are corresponding to the corresponding harmonic frequency (depth adjustment: level 6 above, the adjusting range 50-100 mm)
Micro-convex array probe (C5-8R15) : the frequency of 5.0 MHz / 6.5 MHz / 7.5 MHz / 8.0 MHz /, four variable frequency, center frequency is 6.5 MHz, each period of frequency conversion are corresponding to the corresponding harmonic frequency (depth adjustment: 8th level above, the adjusting range 50-120 mm)
Rectal linear probe (L5.5-9LV64) : the frequency of 5.5 MHz / 6.5 MHz / 7.5 MHz / 9.0 MHz /, four variable frequency, center frequency is 6.5 MHz, each period of frequency conversion are corresponding to the corresponding harmonic frequency (depth adjustment: 13th level above, the adjusting range 50-120 mm)
Gain: 0-100, step 1, can be adjusted visually
TGC: 8 segments are adjustable
Dynamic range: 0-120dB
Scanning Angle: 80-100
Focus: The focus position is adjustable, with 4 focal points
Frame correlation :4-100 (step 1)
Spot suppression: 0-50
Ultrasonic power: 40-100, step 4
Magnification: 1-16
Contrast: 1-9
Brightness: 1-9
Gamma correction: 1-9
Grayscale mapping: 1-19
Number of focal points: 1-4
Position marker: ≥23, support position indicator
Pseudo color: 10 kinds
With gravel positioning function and real-time measurement data
Support up-and-down flip, left-right flip and black and white flip
M mode scanning speed: 1-63
Support time setting: Date time, date format, time format, etc
Automatic freeze setting is supported
Automatic sleep time is 6-99 minutes
Image storage: Image storage format: BMP
Movie Playback: 256
Comments support both upper and lower case English
