ALT-100A/B Veterinary Laser Therapy Device
ALT-100A/B

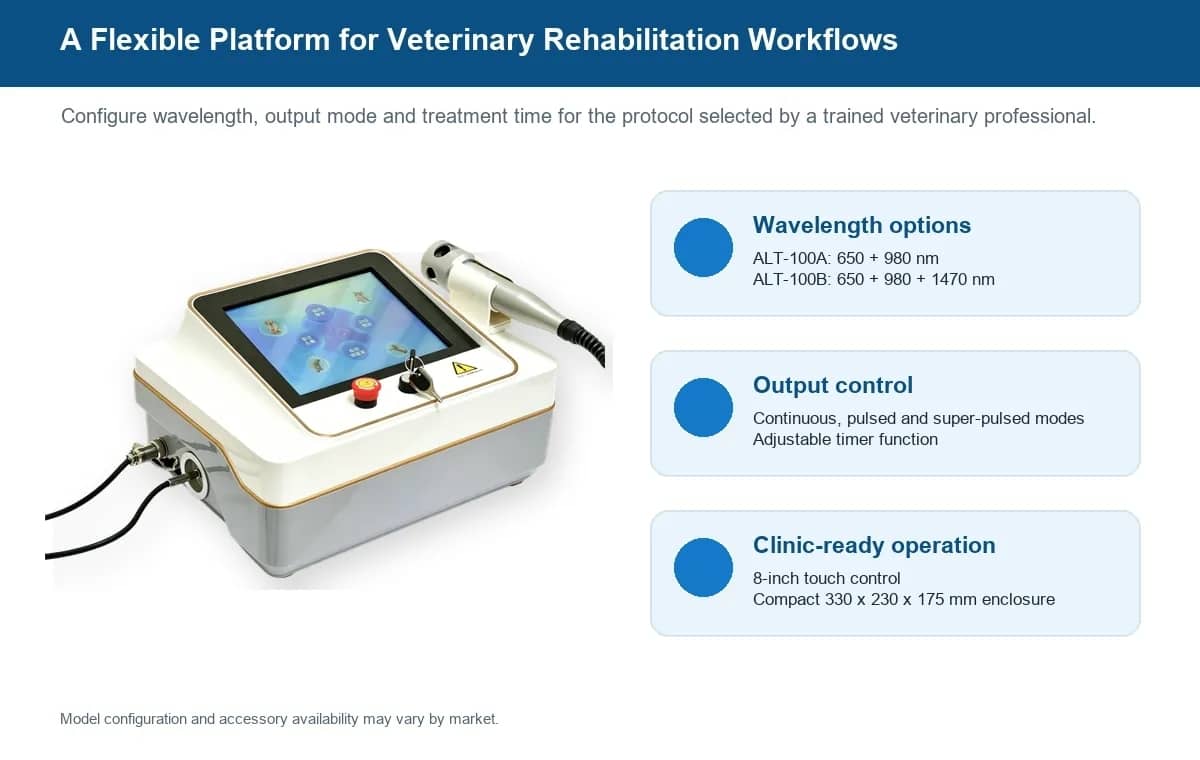

Key Features
Two wavelength configurations
Choose 650 + 980 nm with ALT-100A or 650 + 980 + 1470 nm with ALT-100B.
8-inch touch operation
The color touchscreen presents operating status and provides direct access to mode, wavelength, power and timing settings.
Compact equipment format
The 330 x 230 x 175 mm enclosure weighs no more than 3.5 kg for ALT-100A or 3.6 kg for ALT-100B.
Adjustable output control
Select continuous, pulsed or super-pulsed output and set treatment time from the touchscreen interface.
Clinic safety controls
Key control, emergency stop, system self-check and fault lockout support controlled professional operation.
Therapy and optional fiber tools
Both models use an adjustable-spot physiotherapy handpiece. ALT-100B can be configured with an optional treatment handpiece and fiber tools.
How the Multi-Wavelength Platform Works
Laser-tissue interaction depends on wavelength, output power, energy delivery, treatment mode, target area and tissue characteristics. The 650 nm and 980 nm channels are configured for veterinary therapy workflows. The 1470 nm channel on ALT-100B is strongly absorbed by water and can be paired with compatible optional fiber accessories for selected soft-tissue applications where permitted by the product labeling.
A trained veterinary professional should select the protocol and adapt it to the diagnosis, treatment area, species, coat, tissue depth and patient tolerance. The device does not replace veterinary examination, diagnosis or clinical monitoring.
Veterinary Applications
- Musculoskeletal rehabilitation plans for joint discomfort and mobility limitations
- Veterinary management plans for sprains, strains and selected tendon or muscle conditions
- Postoperative rehabilitation and tissue-recovery support where permitted by the approved labeling
- Canine and feline physiotherapy workflows selected and monitored by a veterinary professional
- Selected fiber-delivered soft-tissue procedures with the appropriately configured ALT-100B, subject to local authorization and the instructions for use
Treatment outcomes vary by diagnosis, protocol and patient. No clinical outcome is guaranteed.
- Musculoskeletal rehabilitation plans for joint discomfort and mobility limitations
- Veterinary management plans for sprains, strains and selected tendon or muscle conditions
- Postoperative rehabilitation and tissue-recovery support where permitted by the approved labeling
- Canine and feline physiotherapy workflows selected and monitored by a veterinary professional
- Selected fiber-delivered soft-tissue procedures with the appropriately configured ALT-100B, subject to local authorization and the instructions for use
Treatment outcomes vary by diagnosis, protocol and patient. No clinical outcome is guaranteed.
ALT-100A and ALT-100B Model Comparison
| Specification | ALT-100A | ALT-100B |
|---|---|---|
| Wavelengths | 650 nm, 980 nm | 650 nm, 980 nm, 1470 nm |
| Maximum average output | 1 W @ 650 nm 30 W @ 980 nm Total 31 W |
0.5 W @ 650 nm 15 W @ 980 nm 15 W @ 1470 nm Total 30.5 W |
| Output modes | Continuous, pulsed, super pulsed | Continuous, pulsed, super pulsed |
| Timer | Adjustable | Adjustable |
| Display | 8-inch touch screen | 8-inch touch screen |
| Cooling | TEC cooling | TEC cooling |
| Dimensions | 330 x 230 x 175 mm | 330 x 230 x 175 mm |
| Weight | <= 3.5 kg | <= 3.6 kg |
| Therapy handpiece | Adjustable-spot physiotherapy handpiece | Adjustable-spot physiotherapy handpiece |
| Fiber treatment configuration | Not listed in the supplied parameter sheet | Optional treatment handpiece and low-hydroxyl quartz fiber |
Accessories and Configuration
The host, handpiece bracket, two keys, power cord, three animal eye masks, two laser protection goggles, electronic user manual, certificate of compliance and one physiotherapy tool. An ALT-100B treatment configuration may include a treatment handpiece, 365 micrometer x 3 m optical fiber, fiber stripper, fiber cutter, foot switch and compatible needles. Confirm the exact package and locally approved accessories in the quotation.
Professional Use and Safety
ALT-100 is a Class 4 laser product. Operate it only in a controlled treatment area by trained veterinary personnel. The operator, assistant and animal need wavelength-matched eye protection. Remove reflective objects and inspect the handpiece and optical surfaces before use.
Do not direct the laser toward the eyes or head. Review contraindications before each session, including active bleeding, known or suspected malignant tumors, endocrine organs, open growth plates, the gravid abdomen, the heart region and other restricted areas listed in the approved instructions for use.
Frequently Asked Questions
ALT-100 is a professional Class 4 veterinary laser platform offered in two wavelength configurations. It combines touchscreen parameter control, adjustable timing and dedicated safety controls for clinic use.
ALT-100A uses 650 nm and 980 nm with maximum average outputs of 1 W and 30 W. ALT-100B uses 650 nm, 980 nm and 1470 nm with maximum average outputs of 0.5 W, 15 W and 15 W. ALT-100B can also be configured with an optional fiber-delivered treatment kit.
Both models provide continuous, pulsed and super-pulsed output. Timing is adjustable separately through the touchscreen interface.
The platform is designed for professional veterinary workflows involving animal patients, including canine and feline cases. A veterinarian must determine whether a patient and treatment area are appropriate.
No. It is a Class 4 laser product intended for trained veterinary professionals in a controlled treatment environment.
