AEG-180 Portable Veterinary Endoscope System for Small Animals
AEG 180
What Is the Dawei AEG-180?
The Dawei AEG-180 is a portable flexible veterinary endoscope system designed for minimally invasive visualization and intervention in small animals and selected exotic-pet cases. It combines 2.5 mm or 2.8 mm scope options, a 1.2 mm working channel, a 120° field of view, a 3-50 mm depth of field, 275° up/down bending and a portable 13.3-inch 1920 × 1080 imaging unit.
Portable Flexibility for Small-Animal Procedures

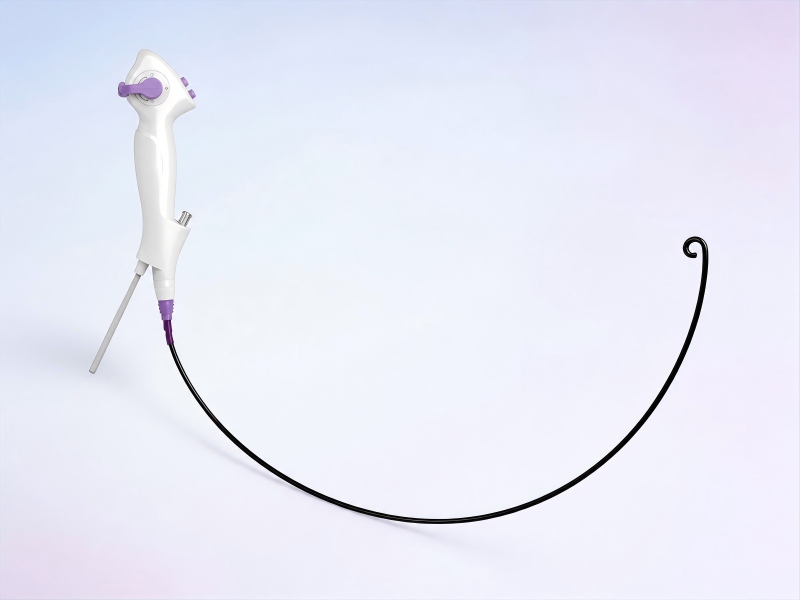

The AEG-180 gives veterinary teams a compact endoscopy platform for natural-orifice examination and compatible minimally invasive procedures. Its flexible insertion tube and highly controllable distal section are designed to navigate narrow, curved anatomy where a rigid endoscope may have limited reach.
Ultra-slim 2.5 mm and 2.8 mm insertion-tube options and working lengths from 620 mm to 680 mm help clinics select an appropriate scope for dogs, cats and selected exotic animals.

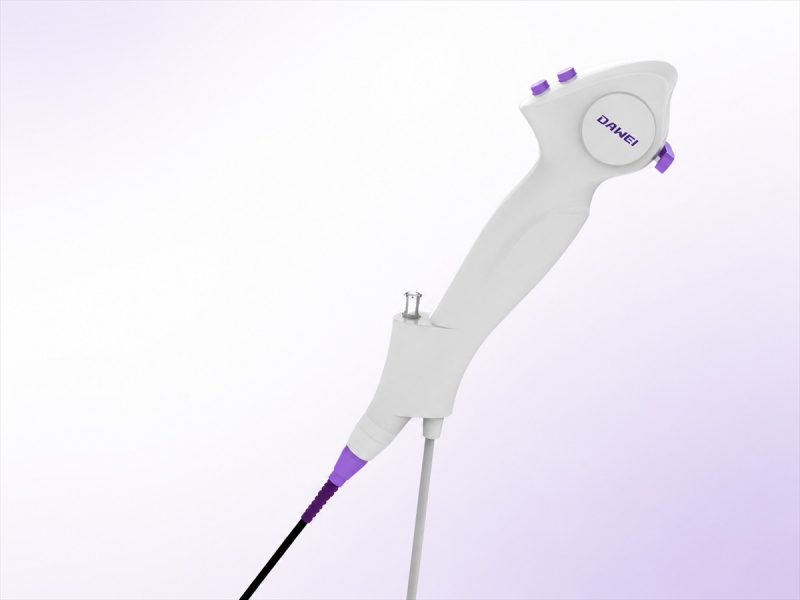

Ergonomic Control and Clear Digital Visualization
A 160,000-pixel digital imaging sensor provides real-time visualization for examination and procedural guidance. Controls on the ergonomic handle support image capture, video recording and freeze functions without requiring the operator to leave the working position.
The imaging unit also supports automatic white balance, menu hiding, picture-in-picture freeze, six illumination settings, file playback and digital zoom levels of 1.0×, 1.5×, 2.0×, 2.4× and 2.7×.
Ultra-Slim Scope with a 1.2 mm Working Channel
The 1.2 mm working channel is designed for compatible fine instruments used for sampling and interventional workflows. Depending on the clinical plan and selected accessories, these workflows may include biopsy sampling, guidewire or stent placement, stone retrieval and other minimally invasive techniques.
The distal section bends up to 275° upward and 275° downward. A 120° field of view and 3-50 mm depth of field support visualization across close and broader working distances.
Key Benefits
- Ultra-slim access: 2.5 mm and 2.8 mm insertion-tube options.
- Interventional capability: 1.2 mm working channel for compatible accessories.
- Flexible navigation: Up 275° / down 275° controlled bending.
- Wide visualization: 120° field of view and 3-50 mm depth of field.
- Portable HD viewing: 13.3-inch 1920 × 1080 touchscreen.
- Flexible output and storage: HDMI, USB and TF interfaces with external storage up to 128 GB.
Typical Veterinary Applications
- Upper urinary tract exploration, including ureteral and renal-pelvis visualization
- Evaluation of suspected ureteral stones, obstruction or stenosis
- Support for compatible stone-retrieval, stent or dilation workflows
- Bronchial lesion visualization and biopsy sampling
- Selected esophageal and research examinations in exotic animals
- Follow-up visualization after an intervention, as determined by the veterinarian
Available Endoscope Configurations
| Model | Insertion Tube OD | Working Length | Working Channel ID | Field of View | Depth of Field | Controlled Bending |
|---|---|---|---|---|---|---|
| UR2568 | 2.5 mm | 680 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
| UR2566 | 2.5 mm | 660 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
| UR2564 | 2.5 mm | 640 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
| UR2562 | 2.5 mm | 620 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
| UR2868 | 2.8 mm | 680 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
| UR2866 | 2.8 mm | 660 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
| UR2864 | 2.8 mm | 640 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
| UR2862 | 2.8 mm | 620 mm | 1.2 mm | 120° | 3-50 mm | Up 275° / Down 275° |
Frequently Asked Questions
Is the AEG-180 a rigid or flexible veterinary endoscope?
The AEG-180 uses a flexible insertion tube with a controllable distal section. It can complement rigid endoscopy where flexible retrograde access is clinically useful.
What animals can the AEG-180 be used for?
The system is designed for small-animal practice, including dogs and cats, and may be used in selected exotic-animal examinations. The veterinarian must select the appropriate scope and procedure for each patient.
Does the scope have a working channel?
Yes. Each listed scope variant has a 1.2 mm working channel for compatible fine instruments and accessories.
Can the system capture photos and videos?
Yes. The system supports image capture, video recording, image freeze, picture-in-picture freeze and file playback.
Configure the AEG-180 for Your Clinical Workflow
Contact Dawei for scope configuration guidance, compatible accessories, distributor information, training support and a quotation.
The AEG-180 is intended for use by trained veterinary professionals. Scope selection, accessories and treatment decisions should be based on patient anatomy, clinical indications and local protocols.
| Display | 13.3-inch touchscreen |
|---|---|
| Resolution | 1920 × 1080 |
| Display Frequency | 50-60 Hz |
| Imaging Sensor | 160,000-pixel digital imaging sensor |
| Battery | Rechargeable lithium battery, 7.3 V / 10,500 mAh |
| Power Adapter | 12 V / 4 A |
| Charging Time | Approximately 2 hours |
| Operating Time | Approximately 5-7 hours, depending on workload |
| Interfaces | HDMI, USB and TF |
| External Storage | Up to 128 GB |
| Main Unit Dimensions | 322 × 199 × 41 mm (L × W × H) |
| Main Unit Weight | Approximately 1.7 kg |
| Digital Zoom | 1.0× / 1.5× / 2.0× / 2.4× / 2.7× |
| Illumination Settings | 0-5 |
| Supported Functions | Image capture, video recording, freeze, picture-in-picture freeze, automatic white balance, file playback and menu hiding |
Specifications may vary by configuration. Contact Dawei to confirm the selected scope, accessories and regional configuration before ordering.
