ADP-200 Veterinary Dental Unit for Pet Dental Treatment

ADP-200 Dental Unit

ADP-200 is a mobile veterinary dental unit for pet oral diagnosis and dental treatment. It integrates a touchscreen computer, intraoral camera, LED shadowless lamp, dental handpieces, ultrasonic scaler, suction system and air compressor, with optional dental DR connection.

Inquiry Now Download as PDF

Product Detail

ADP-200 Main Unit Specifications

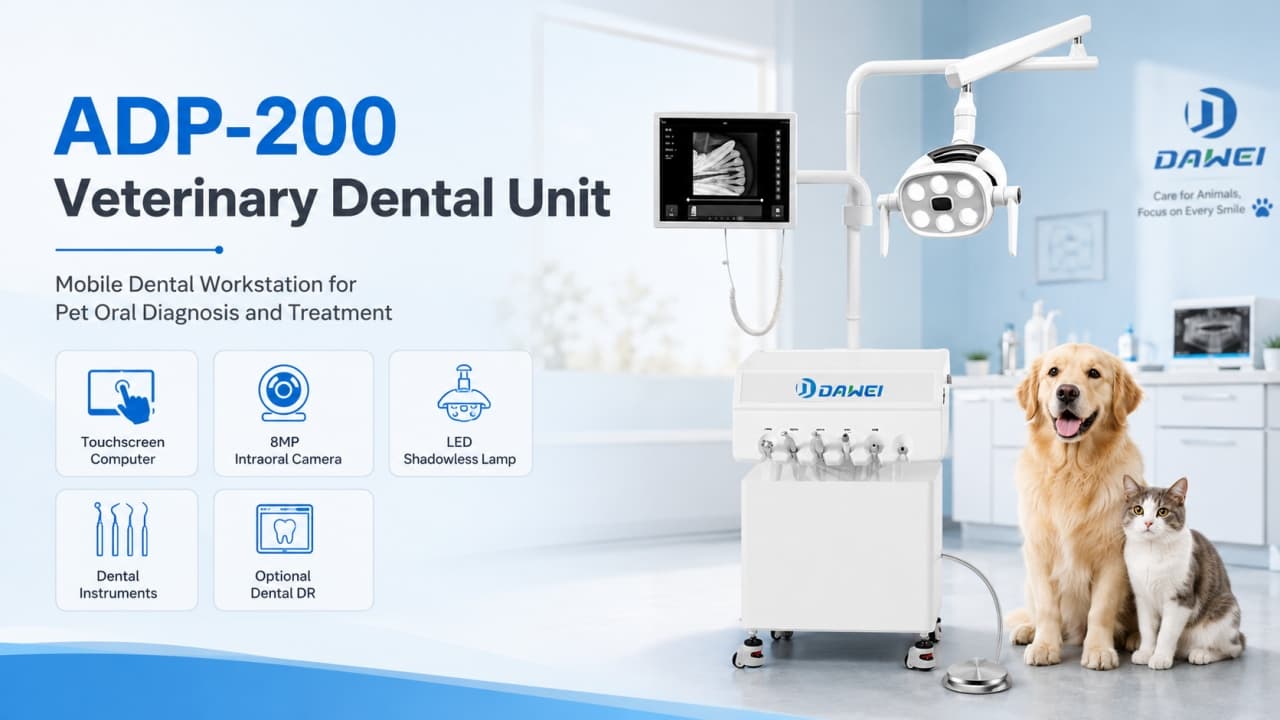

ADP-200 veterinary dental unit for pet oral diagnosis and treatment

ADP-200 Veterinary Dental Unit for Pet Dental Treatment

The ADP-200 Veterinary Dental Unit is a mobile pet dental treatment workstation designed for veterinary oral diagnosis, dental cleaning, scaling, polishing, rinsing, suction, tooth preparation and clinical dental assistance. It is suitable for veterinary hospitals, pet clinics, animal dental treatment rooms and companion animal practices that need an integrated dental unit for dogs and cats.

Instead of using separate dental instruments one by one, ADP-200 combines oral examination, dental treatment tools, lighting, suction, air supply, water supply, image display and intraoral documentation into one mobile platform. This helps veterinarians keep instruments organized, improve treatment workflow and provide clearer oral disease explanation to pet owners.

The ADP-200 can also be connected with an optional digital dental DR system when dental X-ray imaging is required. This optional configuration supports dental radiograph viewing and oral diagnosis for tooth root, pulp cavity, periodontal and extraction evaluation.

What Is Included in ADP-200 Veterinary Dental Unit?

ADP-200 is designed as a complete veterinary dental workstation. The unit includes treatment tools, diagnostic support devices, air and water systems, suction collection and mobile operation components.

Included Component	Function	Clinical Use
All-in-One Touchscreen Computer	Integrated display and operation platform.	Used for oral image display, case documentation, intraoral camera images and optional dental DR image viewing.
Instrument Tray / Workbench	Provides an organized area for dental tools and oral treatment instruments.	Keeps handpieces, scaler, syringe and accessories within reach during pet dental procedures.
Air Compressor	Provides air power for pneumatic dental instruments.	Supports high-speed handpiece, low-speed handpiece and other air-driven dental tools.
LED Shadowless Lamp	Provides bright oral illumination for veterinary dental procedures.	Helps veterinarians clearly observe the oral cavity during examination, cleaning and treatment.
Three-Way Syringe	Provides air spray, water spray and mist spray.	Used for cleaning, drying, cooling and rinsing during dental treatment.
High-Speed Handpiece	Air turbine-driven handpiece for high-speed cutting.	Used for tooth cutting, cavity cleaning, tooth preparation and root canal treatment assistance.
Low-Speed Handpiece	Pneumatic motor-driven handpiece for lower-speed operation.	Used for polishing, grinding, finishing and dental surface treatment.
Ultrasonic Scaler	High-frequency vibration system with water cooling and irrigation.	Used to remove dental plaque, calculus, supragingival deposits and subgingival deposits.
Saliva Ejector / Suction Tube	Uses negative pressure to remove oral fluids and debris.	Collects saliva, blood, flushing liquid and treatment debris from the oral cavity.
Foot Pedal	Controls air and water supply for dental instruments.	Allows convenient hands-free operation during treatment.
Clean Water Bottle	Stores distilled water or purified water.	Provides water supply for rinsing, cooling and ultrasonic scaling.
Waste Liquid Bottle	Collects used liquid and oral treatment waste.	Helps maintain a cleaner dental treatment environment.
Built-in Socket	Provides power extension for additional devices.	Convenient for connecting dental or imaging accessories.
Mobile Casters	Supports movement and positioning in the clinic.	Allows flexible use in different dental rooms or treatment areas.
Optional Digital Dental DR Connection	Compatible with optional dental X-ray imaging system.	Supports dental radiograph viewing and diagnostic report output when paired with compatible dental DR equipment.

Smart Oral Examination and Diagnosis Support

ADP-200 is more than a dental treatment table. It provides digital support for veterinary oral examination and case documentation. The touchscreen computer allows veterinarians to view oral images directly on the workstation, while the intraoral camera records visible oral lesions, dental calculus, gingival inflammation and treatment results.

For clinics that need dental radiography, ADP-200 can be configured with an optional digital dental DR system. This helps veterinarians evaluate structures that cannot be fully assessed by visual examination alone, such as tooth roots, pulp cavity, periapical region and periodontal bone condition.

Diagnosis Module	Product Detail	Value for Veterinary Clinics
Touchscreen Computer	Intel processor, touchscreen operation, no external keyboard or mouse required for routine use.	Improves image viewing, case management and treatment workflow in pet dental clinics.
8MP Intraoral Camera	Real-time HD oral image transmission to the display terminal.	Helps document oral lesions, compare before-and-after treatment results and improve pet owner communication.
LED Shadowless Lamp	6-hole LED cold light source, infrared non-contact switch and adjustable brightness up to 30000 LUX.	Provides clear illumination and reduces unnecessary contact during oral procedures.
Optional Dental DR Connection	Connects with compatible digital dental X-ray imaging equipment.	Supports dental X-ray image viewing, report output, printing and remote sharing when configured with dental DR.

Professional Dental Treatment Tools and Clinical Applications

ADP-200 includes the core tools commonly used in veterinary dentistry. These tools support routine pet dental cleaning, periodontal care, polishing, tooth preparation, root canal treatment assistance and oral treatment workflow.

Dental Tool	Working Principle	Clinical Application
High-Speed Handpiece	Driven by an air turbine, with a speed up to 380,000–400,000 rpm.	Used for tooth cutting, cavity cleaning, tooth preparation and root canal treatment assistance.
Low-Speed Handpiece	Driven by a pneumatic motor, with a speed up to 22,000 rpm.	Used for polishing, grinding and finishing. The contra-angle handpiece is used for intraoral polishing and grinding, while the straight handpiece is suitable for prosthetic polishing and grinding.
Ultrasonic Scaler	Converts electrical energy into high-frequency vibration, combined with water cooling and irrigation.	Efficiently removes plaque, tartar, supragingival calculus and subgingival deposits, supporting periodontal care and oral cleaning.
Three-Way Syringe	Outputs high-pressure water, air and mist.	Used for cleaning, drying, cooling and flushing during oral procedures.
Saliva Ejector	Generates negative pressure through the suction system.	Removes saliva, blood, flushing liquid and debris from the oral cavity during dental treatment.

Clinical Use Cases for Dogs and Cats

The ADP-200 veterinary dental unit is suitable for daily oral care and dental treatment in dogs and cats. It helps clinics build a more complete pet dental service workflow from oral inspection to treatment and documentation.

Dog and cat oral examination
Dental scaling and polishing
Dental plaque and calculus removal
Periodontal disease care
Tooth cutting and preparation
Root canal treatment assistance
Tooth extraction assessment and treatment support
Oral lesion documentation with intraoral camera
Before-and-after treatment comparison
Optional dental X-ray image viewing when connected with dental DR

Humanized Design for Veterinary Dental Clinics

ADP-200 is designed for daily clinical use in veterinary hospitals and pet dental clinics. The upgraded air source system can be equipped with a 10L or 15L air storage tank to reduce compressor start frequency. The housing uses sound-insulating and shock-absorbing materials to help reduce operating noise.

The water and air pipelines use imported polyether material with antibacterial, corrosion-resistant and hydrolysis-resistant characteristics. Clear control labels, adjustable water flow for the high-speed handpiece, low-speed handpiece and scaler, and adjustable scaler vibration frequency make daily operation easier for veterinary staff.

Design Feature	Benefit
10L / 15L Air Storage Tank Option	Reduces compressor start frequency and supports more stable air supply.
Sound-Insulating Housing	Helps reduce noise interference during veterinary dental treatment.
Imported Polyether Water and Air Tubing	Antibacterial, corrosion-resistant and hydrolysis-resistant for longer clinical service life.
Adjustable Water Flow	High-speed handpiece, low-speed handpiece and scaler water flow can be adjusted according to clinical needs.
Adjustable Scaler Frequency	Allows clinicians to adjust ultrasonic scaler vibration frequency for different dental procedures.
Built-in Socket and Silent Rubber Casters	Supports equipment expansion and flexible movement within the clinic.

Why Choose ADP-200 Veterinary Dental Unit?

Reason	Explanation
Complete Dental Unit for Pet Clinics	ADP-200 integrates dental handpieces, ultrasonic scaler, suction, syringe, lighting, air supply, water supply, intraoral camera and touchscreen computer in one workstation.
Designed for Dog and Cat Dentistry	The system supports oral examination, scaling, polishing, periodontal treatment, tooth preparation, suction and dental procedure assistance for companion animals.
Built-in Digital Oral Documentation	The 8MP intraoral camera helps veterinarians record oral lesions and show treatment results clearly to pet owners.
Optional Dental DR Workflow	Clinics can add compatible dental DR imaging when dental radiographs are needed for root, pulp cavity, periodontal or extraction assessment.
Mobile and Organized Workstation	The mobile unit helps organize instruments and improve clinical efficiency in veterinary dental treatment rooms.
Low-Noise and Durable Design	Upgraded air source, sound-insulating materials, imported water and air tubing and silent casters support daily clinic use.

FAQ

What is ADP-200?

ADP-200 is a mobile veterinary dental unit designed for pet oral diagnosis and dental treatment. It integrates dental instruments, suction, lighting, air supply, water supply, touchscreen display and intraoral camera into one workstation.

What components are included in ADP-200?

ADP-200 includes an all-in-one touchscreen computer, instrument tray, air compressor, LED shadowless lamp, three-way syringe, high-speed handpiece, low-speed handpiece, ultrasonic scaler, saliva ejector, foot pedal, clean water bottle, waste liquid bottle, built-in socket and mobile casters.

Is dental DR included as standard?

No. Digital dental DR is an optional configuration. ADP-200 can connect with compatible dental DR equipment when dental X-ray imaging is required.

What is the intraoral camera used for?

The 8MP intraoral camera is used to capture real-time oral images, document oral lesions, compare before-and-after treatment results and improve communication with pet owners.

What dental procedures can ADP-200 support?

ADP-200 supports oral examination, scaling, polishing, rinsing, suction, tooth cutting, tooth preparation, periodontal treatment, root canal treatment assistance and tooth extraction assessment.

What animals is ADP-200 suitable for?

ADP-200 is mainly suitable for dogs, cats and other companion animals that require oral diagnosis and dental treatment.

What is the difference between a veterinary dental unit and a dental X-ray system?

A veterinary dental unit is mainly used for dental treatment procedures such as scaling, polishing, suction, rinsing and handpiece operation. A dental X-ray system is used for radiographic imaging. ADP-200 is the dental treatment workstation, while dental DR is an optional imaging configuration.

The following technical parameters describe the ADP-200 veterinary dental unit main system and its built-in power supply configuration.

Item	Specification	Value
1	Power Adapter Input Voltage	Single phase AC 100–240V, ±10%
2	Power Adapter Input Frequency	50/60Hz, ±1Hz
3	Power Adapter Input Power	286W
4	Output Power	16.8W
5	Charging Voltage	DC 16.8V
6	Charging Current	1.0A
7	Focal Spot Nominal Value	0.8mm
8	Anode Angle	19°
9	Maximum Tube Voltage	70kV
10	Maximum Output Power	0.21kW
11	Maximum Loading Condition	70kV, 3mA, 2s
12	Radiation Output Repeatability	≤0.05
13	Tube Voltage Deviation	70kV
14	Tube Current Deviation	3mA
15	Operation Mode	Non-continuous operation; maximum power-on time 2.5 min, minimum power-off time 1.30 min
16	X-Ray Tube Assembly Total Filtration	>2.5mm Al
17	X-Ray Tube Inherent Filtration	0.75mm Al
18	Additional Filtration	1.00mm Al
19	Half-Value Layer	>1.5mm Al at 70kV
20	Leakage Radiation	≤0.25mGy/h at 70kV, 3mA, 2s
21	Loading Time Adjustment Range	0.01–2.00s, adjustable in steps
22	Minimum Distance from Focal Spot to Skin	>200mm
23	Beam Limiting Device End Size	Round, diameter <60mm
24	Nominal Electric Power	0.21kW at 70kV, 3mA, 0.1s
25	Maximum Tube Current at 70kV	3mA
26	High-Voltage Generator Frequency	60kHz

Optional Digital Dental DR Specifications

ADP-200 supports an optional digital dental DR imaging configuration. The dental DR system is used for veterinary dental X-ray imaging and can support oral diagnosis when tooth root, pulp cavity or periodontal structures need to be evaluated.

Note: The digital dental DR system is optional and should be selected according to clinic requirements.

Category	Specification	Parameter	Unit
Application	Imaging Type	X-Ray Imaging	-
Type	Source Type	X-Ray Source	-
Work Frequency	Frequency	40	kHz
Input	Voltage Range	12–16.8 VDC	V
Input	Maximum Power	210	W
Output	Marked Power	210	W
Output	Tube Voltage Range	60–70	kV
Output	Tube Voltage Accuracy	±10%	-
Output	Tube Current Range	1–3	mA
Output	Tube Current Accuracy	±10%	-
Output	Exposure Time Range	0.04–2	s
Output	Exposure Time Accuracy	±10%	-
Function	Automatic Calibration	Yes	-
Function	SID	100mm, 200mm	mm
MBK Performance	Focal Spot	0.4	mm
Communication	Interface	RS232	-
Safety Requirement	Cooling System	Natural air cooling	-
Safety Requirement	Operating Temperature	0°C–40°C	°C
Safety Requirement	Relative Humidity	10%–90%, non-condensing	-
Appearance	Weight	1.3 kg, excluding power supply and hand switch	kg
