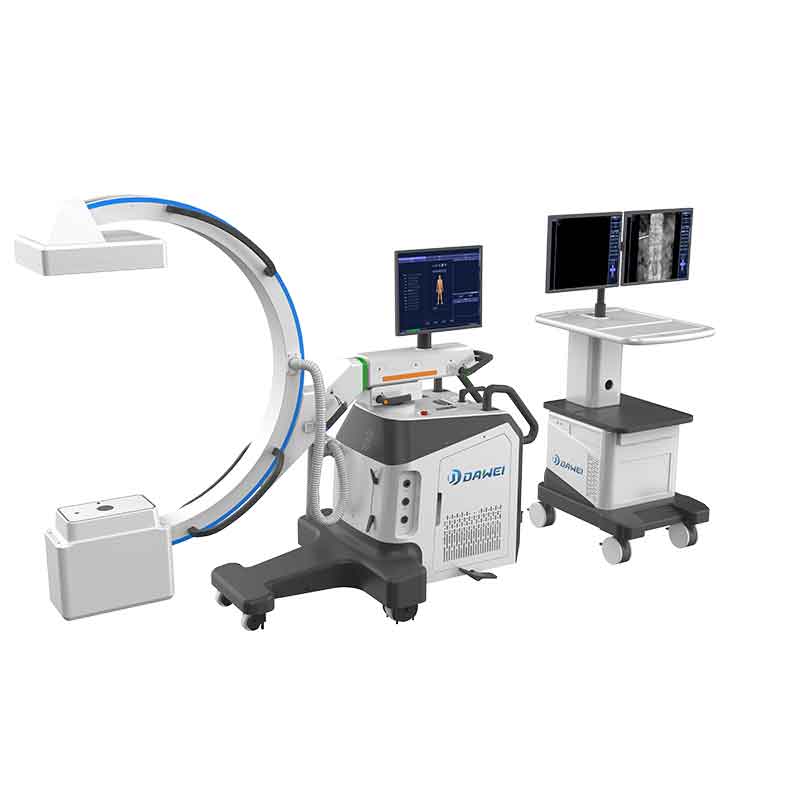

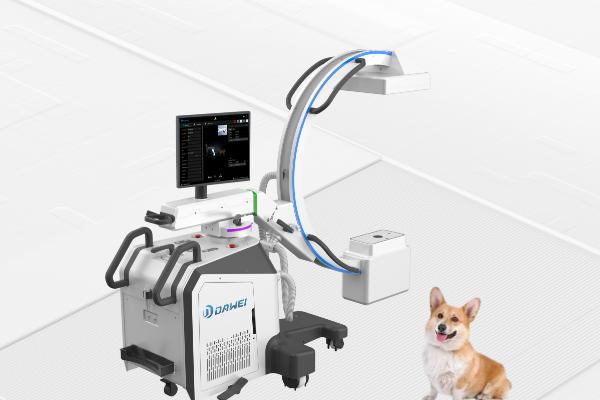

Veterinary Mobile C-arm Pet X-ray Equipment
RCM-605XV
Applications
- Orthopedic Surgery (Fracture repair, TPLO, etc.)
- Soft Tissue Surgery
- Foreign Body Localization & Removal
- Cardiac & Angiographic Procedures
- Neurological Procedures
- Diagnostic Radiography in Surgery
- Dental Procedures
- Emergency & Critical Care Imaging
The RCM-605XV pet x ray machine delivers the superior image quality, operational flexibility, and safety features required by modern veterinary practices for advanced surgical and diagnostic care. Generate high-quality pet x rays with confidence and efficiency.
Performance

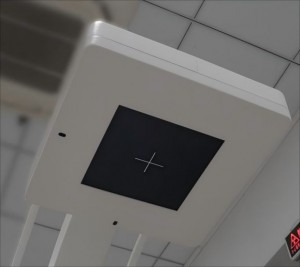

Dynamic Flat Panel Detector
- Experience crystal-clear pet x rays with superior detail, essential for precise diagnosis and surgical guidance.
- 21 x 21 cm Fixed Amorphous Silicon Dynamic Flat Panel Detector (FPD) provides a large, distortion-free imaging field.
-
Project
Parameters
Detector Technology
Amorphous Silicon
Scintillator
Cesium Iodide
Pixel Matrix
1024 ×1024
Pixel Size
200 μm
Effective Imaging Area
204mm ×204 mm
Energy Range
40kV~160kV
Spatial Resolution
2.5lp/mm
AD Conversion Bit Depth
16 bit
Enhanced Patient & Staff Safety with Low Radiation Dose:
Advanced technology significantly minimizes radiation exposure for both pets and veterinary personnel during pet x ray exams and surgeries.
Automatic Brightness Control (ABC) optimizes exposure parameters dynamically, ensuring optimal image quality with the lowest possible dose and reducing manual adjustments.

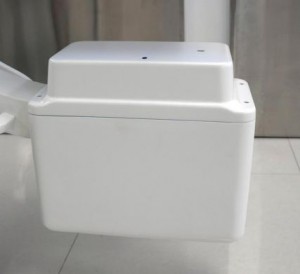

Combination Head
Combines a high-efficiency, stable generator and collimator for reliable performance.

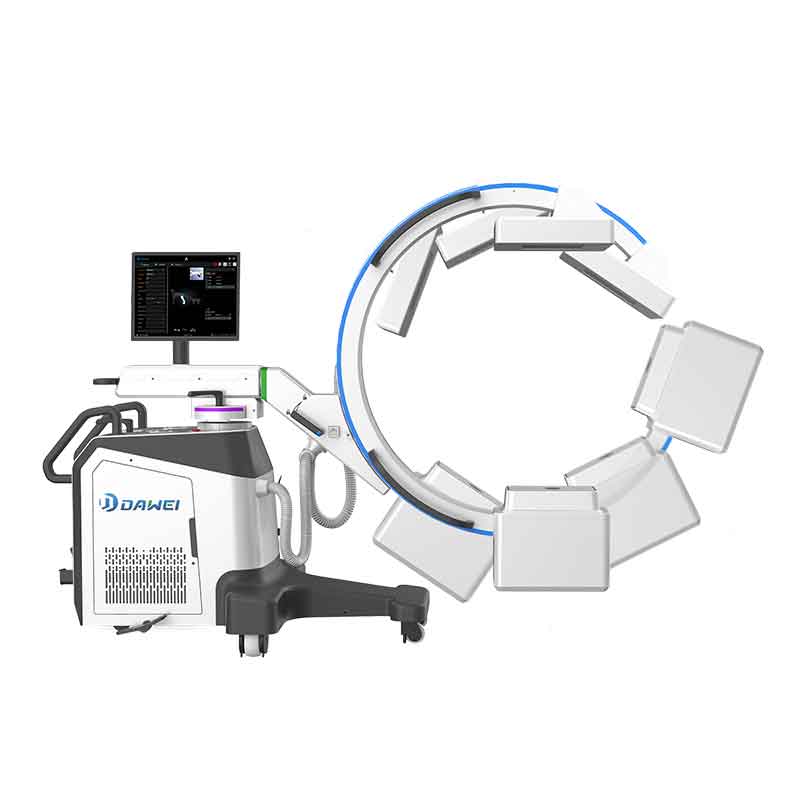

Ultimate Flexibility for Complex Pet Procedures:
- Multi-Angle Positioning: The versatile C-arm moves effortlessly to capture pet x rays and live fluoroscopy from virtually any angle, crucial for visualizing difficult anatomy and complex pet positioning.

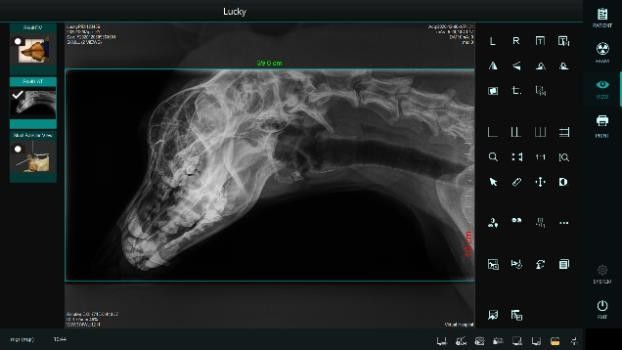

Clinical Images
