Portable Veterinary Digital Radiography System

RV-550B

The Portable Veterinary DR System is a lightweight, durable, and high-performance digital radiography solution designed specifically for large animal imaging. Unlike traditional stationary X-ray systems, this portable unit offers mobility, rapid imaging, and high diagnostic accuracy, making it ideal for veterinary hospitals, mobile clinics, farms, equine centers, and field applications.

With a 17×17-inch large-area flat panel detector and advanced CsI technology, the system ensures superior image quality with reduced radiation dose, meeting the diverse demands of large animal diagnostics.

Inquiry Now Download as PDF

Product Detail

Applications

Equine Imaging: Limb, thoracic, abdominal, and spinal examinations.
Large Farm Animals: Cattle, camels, sheep, goats, and swine diagnostics in field or barn environments.
Zoo & Wildlife Medicine: On-site imaging for large exotic animals.
Veterinary Surgery Support: Intraoperative radiography for orthopedic and trauma cases.
Emergency and Field Use: Mobile veterinary services, farm visits, and remote animal care.

Performance

Portable & Lightweight: Compact design for easy transportation and field operation.

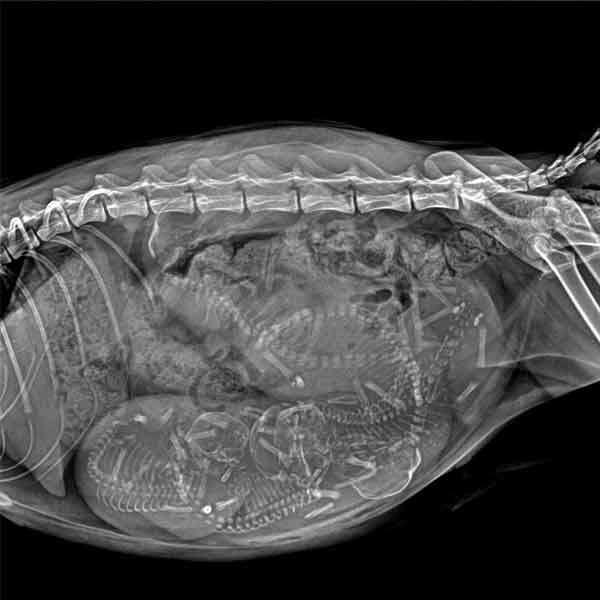

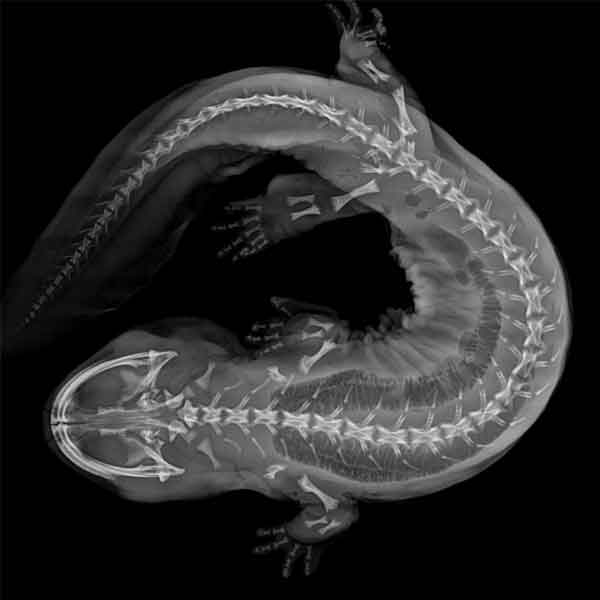

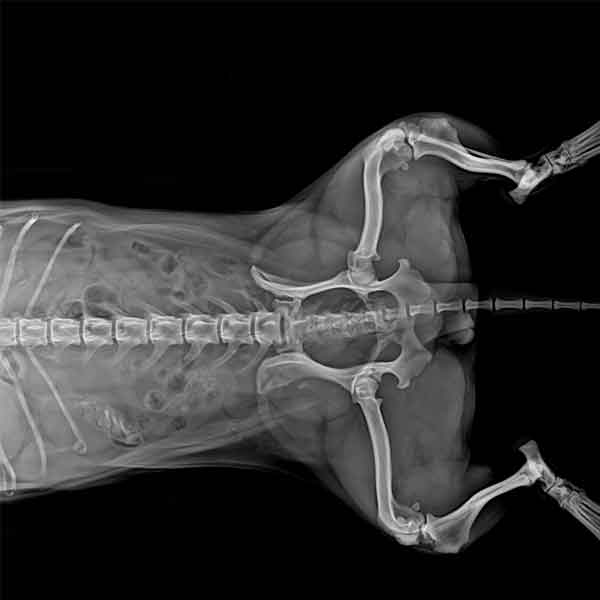

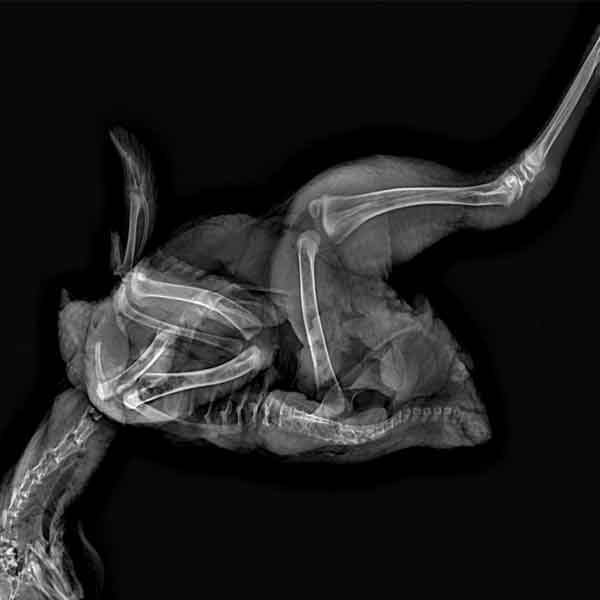

High-Resolution Imaging: 3072×3072 matrix, 139 μm pixel size, and 16-bit depth provide exceptional detail for veterinary diagnostics.
Reduced Radiation Dose: CsI scintillator ensures clearer images at lower exposures.
Fast Imaging Workflow: Preview in 1.4s and full image in 3.7s.
Wireless Connectivity: Images can be transmitted directly to laptops, tablets, or PACS systems for immediate review.
Durable Construction: Shockproof, dustproof, and water-resistant design suitable for farm and outdoor environments.
Long Battery Life: High-capacity battery supports long working hours without external power.

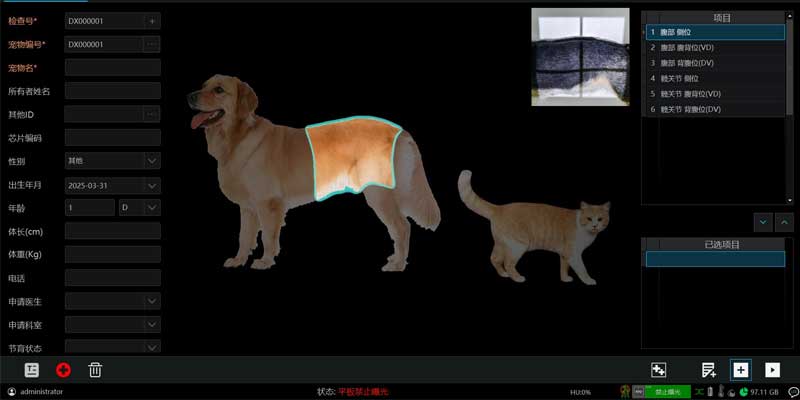

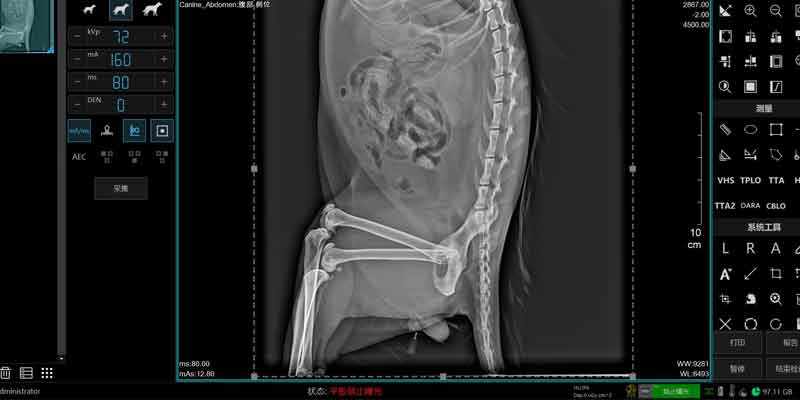

Veterinary Imaging Software: Intuitive interface with patient management, positioning guides, advanced image processing, and full DICOM compatibility.

Components

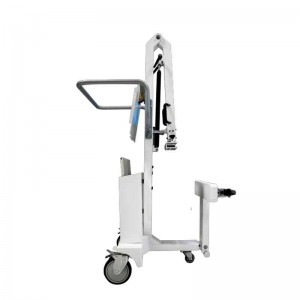

Collapsible Mobile Stand: Easy height and angle adjustments, foldable for transport.

X-ray Generator: Compact, high-frequency unit (40–125kV, 0.1–320 mAs), stable and efficient for animal imaging.
Flat Panel Detector (FPD):
- 17×17-inch large imaging area
- CsI technology for high sensitivity
- 139 μm pixel size, 16-bit ADC
- Lightweight (4 kg), wireless design
Veterinary Imaging Laptop: Equipped with advanced DR software, patient database, and image processing tools.
Protective Accessories (Optional): Lead aprons and shields for operator safety.
Collapsible Mobile Stand: Easy height and angle adjustments, foldable for transport.
