AEG 200 Veterinary Endoscopy System | Flexible Veterinary Endoscope
AEG-200
Applications

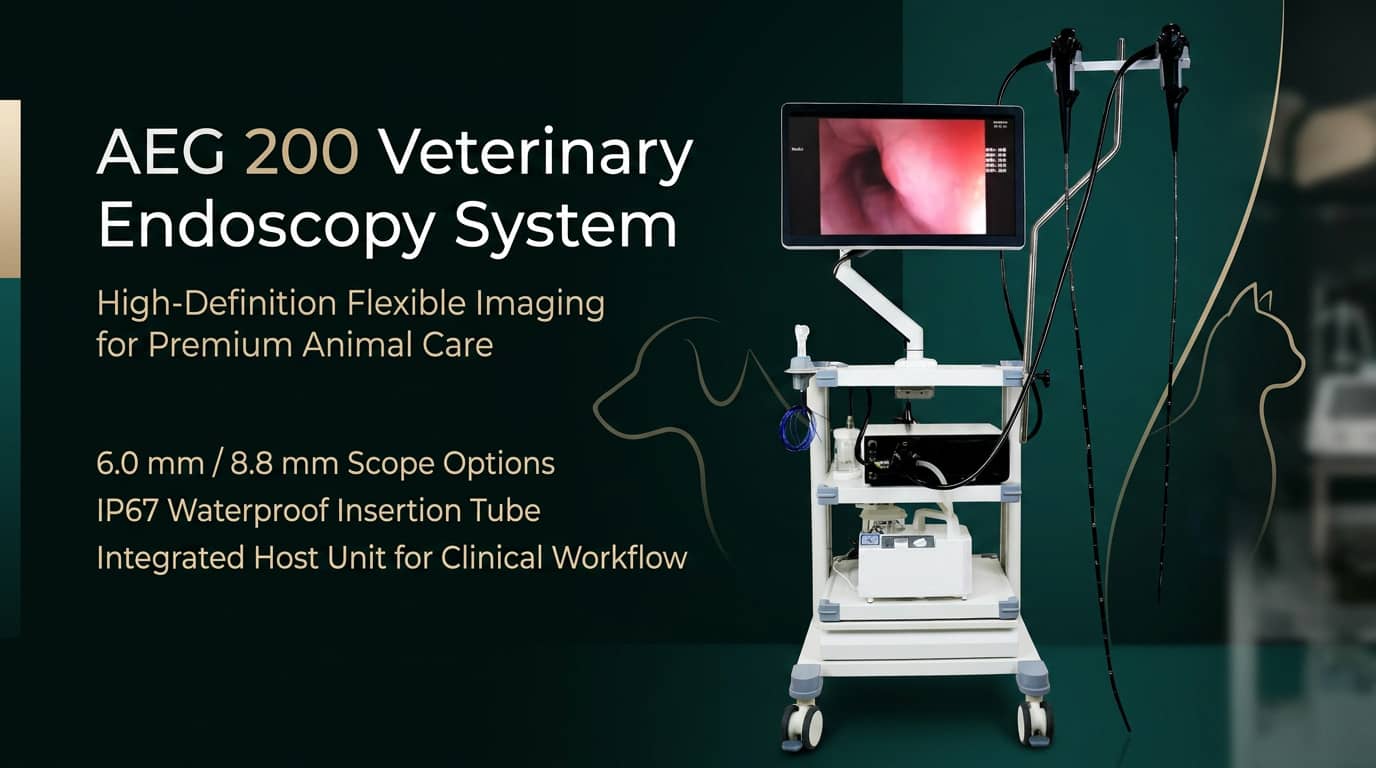

The AEG 200 veterinary endoscopy system is a structured product solution for clinics, distributors, and hospitals looking for modern veterinary endoscopy equipment with HD imaging, ergonomic handling, and scope options for both small and large animal gastrointestinal examination.
-
Gastrointestinal examination for large and small animals
-
Respiratory tract inspection (bronchoscopy)
-
Ear, nose, and throat examinations (otoscopy, rhinoscopy)
-
Reproductive tract diagnostics
-
Minimally invasive surgeries and biopsies
-
Clinical use in horses, cattle, dogs, cats, pigs, sheep, camels, birds, and exotic animals
Why choose the AEG 200 veterinary endoscopy system
HD veterinary imaging
Applicable to All Clinical Departments;
1920×1200 resolution with vivid detail; supports multiple HDMI/DVI output resolutions;
Dual LED Light Source
Five adjustable brightness levels for optimal visibility.
IP67 waterproof insertion tube
Designed for reliable cleaning workflows with water, oil, and corrosion resistance for routine veterinary endoscopy use.
Integrated host architecture
Host unit integrates processor, light source, air pump, collection bottle, and image management for a cleaner clinical setup.
360° all-round steering without blind spots
Flexible 360-degree lateral rotation Eliminates visual blind spots effectively
Vision Clarity for Confident Diagnosis
High-definition digital signals combined with structural enhancement and color enhancement technologies ensure every image is crystal clear.
Lightweight handpiece with optimal grip comfort
Superior handling for effortless operation Newly upgraded for exceptional stability Intuitive button layout enables precise and convenient control
Buyers searching for a veterinary endoscope for sale usually compare outer diameter, working channel, articulation, imaging quality, waterproofing, host configuration, and compatibility with accessories. This section answers those queries directly.
Product Name: Veterinary Endoscope System Main Unit
Waterproof Rating: IP67
Viewing Angle: 360° full rotation
Main Unit Dimensions: 35 cm × 33 cm × 12 cm
Package Contents: Endoscope + Main Unit + USB Drive, Power Connection Cable + HDMI High-Definition Cable, User Manual, Warranty Card
Mirror body parameters：
| Product Name | External Diameter (mm) | Forceps Channel Diameter (mm) | Working Length (mm) | Field Angle (°) | Depth of Field (mm) | Up/Down/Left/Right (°) |
| 8828 | 8.8 | 2.8 | 1500 | 140 | 3-100 | 210/90/100/100 |
| 6020 | 6 | 2 | 1000 | 140 | 3-100 | 210/90/100/100 |
| 1330 | 12.8 | 3.8 | 3000 | 140 | 3-100 | 180/180/160/160 |
| 3006 | 3 | 1 | 600 | 120 | 3-100 | 180/180 |
Veterinary endoscope specifications and host unit details
Veterinary endoscope FAQ for buyers and distributors
The system is designed for veterinary gastrointestinal examination and treatment support through natural orifices, with scope sizes suited to small animals as well as medium and large animals.
Yes. The product information provided for this page includes 6.0 mm and 8.8 mm gastroscope configurations, allowing hospitals to match the scope to animal size and clinical demand.
Depending on the specific scope model and configuration, the system price ranges from $3200 to $6000.
The integrated host, touchscreen control, HD imaging features, ergonomic handle, waterproof scope construction, and compatibility with accessories help simplify setup and day-to-day use.
The system comes with a 2-year official warranty, ensuring peace of mind for your clinical practice.
It offers adjustable HDMI output settings to optimize display on monitors with varying aspect ratios or resolutions, successfully resolving image distortion. Supported resolutions include:
-
1080P (60Hz / 50Hz)
-
720P / 7200P (60Hz / 50Hz)
-
1024×768 (60Hz)
-
1280×960 (60Hz)
-
1440×900 (60Hz)
-
The host unit dimensions are $35\text{cm} \times 33\text{cm} \times 12\text{cm}$.
-
Package Contents include: Endoscope + Host + USB Drive + Power Cable + HDMI Cable + User Manual + Warranty Card.
