RV-32AL Veterinary Digital Radiography (DR) System | 32kW Low‑Dose Pet X‑Ray
RV 32AL
Product Overview

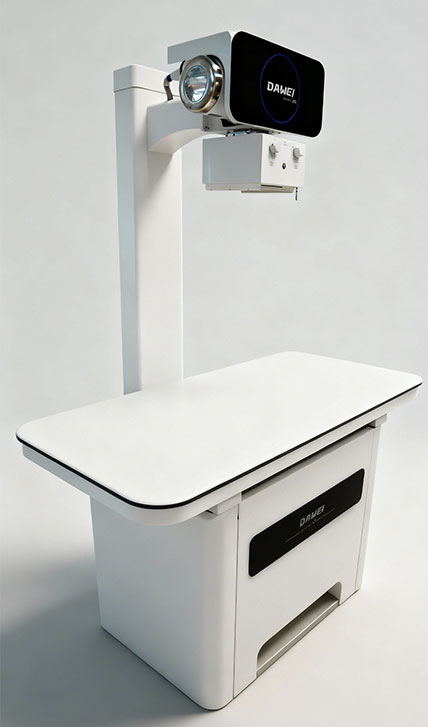

RV-32AL is an animal / veterinary digital radiography (DR) system designed for fast, consistent, and low‑dose X‑ray imaging in veterinary clinics and pet hospitals. It combines a 32kW high‑frequency generator (200kHz), a CsI flat panel detector, and intelligent DR software to support daily radiology workflows—from routine chest and orthopedic exams to abdominal and contrast studies.
Key Benefits (Why RV-32AL)
1) High stability for reliable daily DR use
- Detector “zero-disconnect” design concept helps reduce common DR interruptions and keeps exams moving.
- Long-term performance stability helps extend service intervals and lower total cost of ownership.
2) Low-dose veterinary X‑ray imaging
- Up to 30% lower dose compared with traditional X‑ray systems (as stated in the product document).
- High-frequency generator (200kHz) helps improve beam quality and supports low‑dose imaging.
- Suitable for sensitive patients (young animals, pregnant animals, or cases requiring follow‑up imaging).
3) Fast imaging to reduce animal stress
- Full workflow in ~5 seconds from exposure to image display (as stated in the product document).
- Preview time < 3 seconds (detector preview specification).
4) High image quality for confident diagnosis
- 16‑bit A/D for richer grayscale detail.
- 3.6 lp/mm spatial resolution for clear visualization of subtle lesions.
- AED (Automatic Exposure Detection) helps reduce retakes.
5) Smart DR software + DICOM connectivity
- Built‑in tools (as stated): WW/WL, measurement, annotation, and more.
- DICOM 3.0 support for integration with PACS / HIS / RIS.
- Automatic calibration function (as stated) to help keep exposures accurate.
- Supports large case storage for comparison and teaching.
Clinical Applications (Veterinary Radiology)
- Chest X‑ray (thoracic radiography): pneumonia, cardiomegaly, mediastinal disease
- Orthopedic X‑ray: fracture, luxation, bone tumor localization
- Abdominal X‑ray: GI foreign body, obstruction, reproductive system assessment
- Contrast studies: digestive tract, urinary system imaging
Technical Specifications
High‑Voltage Generator
| Item | Specification |
| Output power | 32 kW |
| Rated input | 220 VAC ±10%, 50 Hz |
| Inverter frequency | 200 kHz ±10% |
| Exposure kV range | 40–150 kV |
| Exposure mA range | 10–400 mA |
| Exposure time range | 1–10,000 ms |
| Exposure mAs range | 0.1–320 mAs |
| Exposure techniques | kV‑mAs; kV‑mA‑ms |
| APR | Up to 2000 APR data sets |
| Communication | RS‑232 |
| Auxiliary power | +24V DC 2A; 24V AC 8A |
Flat Panel Detector (FPD)
| Item | Specification |
| Detector technology | a‑Si (amorphous silicon) |
| Scintillator | CsI (cesium iodide) |
| Pixel matrix | 3072 × 3072 |
| Pixel size | 139 μm |
| A/D conversion | 16‑bit |
| Spatial resolution | 3.6 lp/mm |
| Active imaging area | 404 mm × 404 mm |
| Detector size | 474 × 474 × 22.5 mm |
| Data interface | Gigabit Ethernet |
| Trigger modes | Soft trigger / Prep |
| Preview time | 3 s |
| Imaging time | 5 s |
| Weight | 3.5 kg |
| Power consumption | 220 W |
Collimator
| Item | Specification |
| Control | Manual |
| Max energy | 150 kV |
| Inherent filtration | 1 mm Al |
| Field size @ SID 100 cm | Min 2 × 2 cm; Max 43 × 43 cm |
| Field error | ≤ 1% of SID |
| X‑ray field error | ≤ 1% of SID |
| Light exposure time | 30 s |
| LED brightness @ SID 100 cm | ≥ 18,000 lux |
| Leakage (EN60601‑1‑3) | < 0.5 mGy/h |
| Power supply | 24V AC/DC, Max 4A |
| Size | 206 × 230 × 143 mm |
| Weight | 7.0 kg ±0.5 kg |
X‑Ray Tube Assembly
| Item | Specification |
| Max tube voltage | 125 kV |
| Focal spot | 1.0 mm (small) / 2.0 mm (large) |
| Max power | 20 kW (small) / 40 kW (large) |
| Anode heat capacity | 140 kHU |
What’s Included / Options
Because packaging can vary by region and configuration, use the list below as a structured template:
- Standard configuration: RV‑32AL DR system (table + stand), high‑voltage generator, X‑ray tube assembly, collimator, flat panel detector, DR software.
- Optional / configurable items: workstation PC, displays, DICOM networking setup, clinic integration (PACS/HIS/RIS), training & installation services.
FAQ (Veterinary DR / Digital Radiography)
Q1: Is RV-32AL a CR or DR system?
A: RV‑32AL is a DR (digital radiography) system that uses a flat panel detector (FPD) for direct digital image acquisition.
Q2: Does it support DICOM for PACS integration?
A: Yes. The product document states DICOM 3.0 support for connecting to PACS / HIS / RIS workflows.
Q3: How fast is the imaging workflow?
A: The product document states about 5 seconds from exposure to image display, with detector preview < 3 seconds.
Q4: What detector technology does it use?
A: The provided specification lists an a‑Si flat panel detector with CsI scintillator, 16‑bit A/D, and 3.6 lp/mm spatial resolution.
Q5: What typical veterinary studies can it handle?
A: The product document lists applications including thoracic, orthopedic, abdominal, and contrast studies.
