When it comes to choosing an equine ultrasound scanner, the price really depends on the functions, image quality, and diagnostic applications you need.
If you only require basic pregnancy checks, a standard veterinary ultrasound machine will be sufficient.
If you also want to monitor uterine health, ovarian structures (follicles, corpus luteum, cysts), or detect reproductive diseases, then a higher-end configuration is recommended.
Among the leading choices in the veterinary imaging market, Dawei Veterinary Ultrasound Systems – S1 and Y6 – have become popular worldwide for equine, bovine, swine, sheep, goat, camel, and companion animal imaging. These machines are not only reliable for pregnancy detection as early as 13 days post-breeding in horses, but also accurate in diagnosing uterine inflammation, ovarian cysts, follicle development, corpus luteum, and even fetal gender identification.

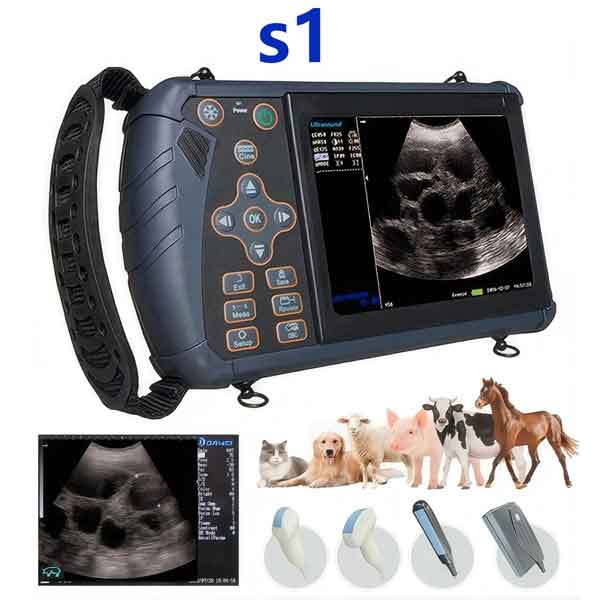

Dawei s1 veterinary ultrasound machine
The S1 Veterinary Ultrasound Diagnostic System is a lightweight, portable, and multi-purpose scanner designed for farm animals and pets.
Key Features:
Applications: Horses, cattle, sheep, pigs, goats, dogs, cats.
Display: 5.6-inch LED medical screen.
Scanning Modes: Convex, linear, and rectal probes available.
Imaging Modes: B, BB, BM.
Frequency Range: 2.5–8.0 MHz (depending on probe).
Animal Measurement Packages:
Cattle (BTD, BUD)
Horse (EGSD, ESD)
Pig (HLA, SLA)
Sheep (SCRL)
Dog & Cat (HD, BD, CRL, GSD)
Memory & Storage: 8G internal, expandable via TF card.
Movie Replay: 255 frames (continuous or frame-by-frame review).
Battery Life: Approx. 3 hours continuous operation.
Weight: 950g – extremely portable.
Probe Options: Convex, micro-convex, rectal, linear, backfat probe.
Water Resistance: IP-rated housing for field use.
Best for: Farm vets who need a lightweight, cost-effective scanner for pregnancy checks, basic abdominal exams, and reproductive management.
Dawei equine ultrasound machines– Y6
The Y6 Full-Waterproof Veterinary Ultrasound is a higher-end system designed for professional veterinary practices, large farms, and mobile equine vets.
Key Features:
Applications: Horses, cattle, pigs, sheep, goats, camels, dogs, cats.
Display: 8-inch medical-grade LCD.
Scanning Modes: Convex, linear, rectal convex, rectal linear, backfat.
Imaging Modes: B, BB, 4B, M/BM.
Specialized Animal Presets: Dogs, cats, sheep, pigs, cattle, horses.
Frequency Range:
Convex probe: 2.0–5.0 MHz (depth up to 280mm)
Rectal probes: 5.5–9.0 MHz (depth 100–120mm)
Advanced Functions:
28 color mapping options
Dynamic range adjustment (0–120)
Noise suppression and frame correlation
One-click full screen mode
Up to 24x zoom
Storage: 32G memory, TF card expandable.
Battery Life: 6600 mAh – up to 6 hours operation.
Durability: Full-waterproof design, ideal for barn and field use.
Best for: Equine practitioners and livestock farms that require high-resolution imaging, long working hours, and professional-grade diagnostic functions.
Why Choose Dawei Veterinary Ultrasound (S1 & Y6)?
Global Market Presence: Exported to over 80 countries, including the United States, Canada, Australia, Germany, UK, Middle East, Southeast Asia, and Africa.
Trusted by Veterinarians Worldwide: Used in equine reproduction centers, cattle breeding programs, swine farms, and companion animal clinics.
Reliable in Harsh Environments: Waterproof, dustproof, and designed for field veterinarians and mobile animal care.
Cost-Effective: More affordable than European brands, while providing equivalent image quality and functionality.
For basic equine pregnancy detection and daily farm use → Dawei S1 is a lightweight, economical choice.
For comprehensive reproductive exams, uterine and ovarian disease detection, and long fieldwork → Dawei Y6 is the premium option.
Both machines are excellent investments for veterinarians who want high-quality imaging, portability, and durability at a competitive price.
Post time: Aug-21-2025
