Handheld Veterinary Ultrasound Scanner for Swine/Gilt & Sheep/Ewe Pregnancy Test

Elite-vet

Elite is a portable veterinary ultrasound designed for swine pregnancy diagnosis and sheep pregnancy scanning on farms. This livestock ultrasound scanner supports B-mode ultrasound imaging with multiple display modes and practical workflow tools for reproductive checks.

Inquiry Now Download as PDF

Product Detail

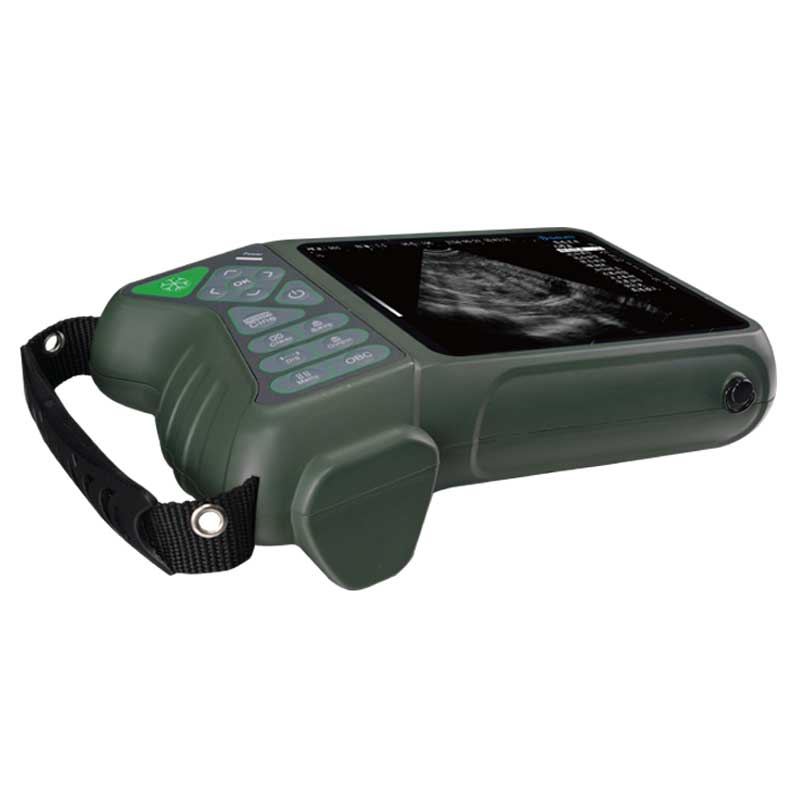

Handheld / portable ultrasound scanner for pig & sheep reproduction checks

B, B+B, 4B, BM, M imaging modes (B-mode / M-mode)

Cine loop replay (≥256 frames) for fast review

Why Elite for livestock farms?

Help improve breeding efficiency with early pregnancy confirmation
Reduce open days and optimize feeding, housing, and farrowing/lambing planning
Suitable for routine checks across herds/flocks

Designed for Swine & Sheep Reproduction

Elite is optimized for livestock reproductive ultrasound workflows, helping farms perform early pregnancy confirmation and routine herd checks. Use it as a sow pregnancy ultrasound scanner in pig farms or a sheep pregnancy ultrasound tool for ewes during breeding season.

Use cases :

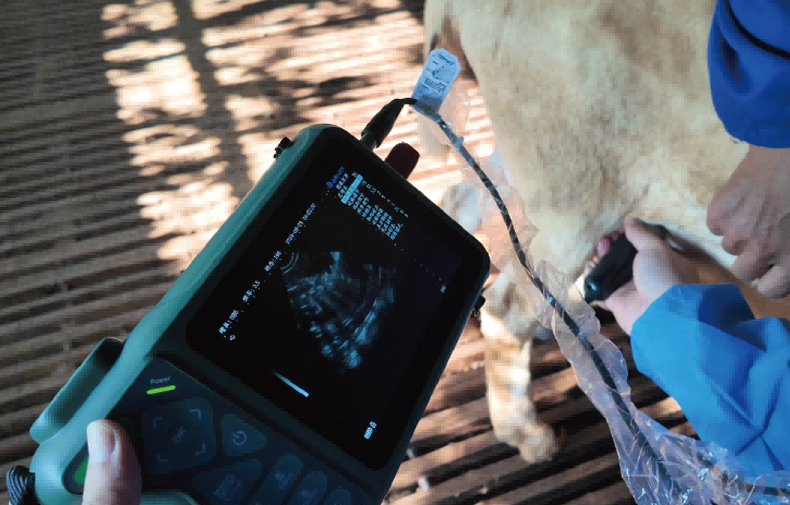

Swine / pig / sow pregnancy check
Sheep / ewe pregnancy scanning
Farm breeding management and reproductive monitoring

Waterproof Mechanical Sector Probe（Mechanical Fan Scan）

Built for livestock reproduction scanning, the Elite system supports a waterproof mechanical sector probe (mechanical fan scan transducer) designed for stable contact and efficient on-farm workflow.

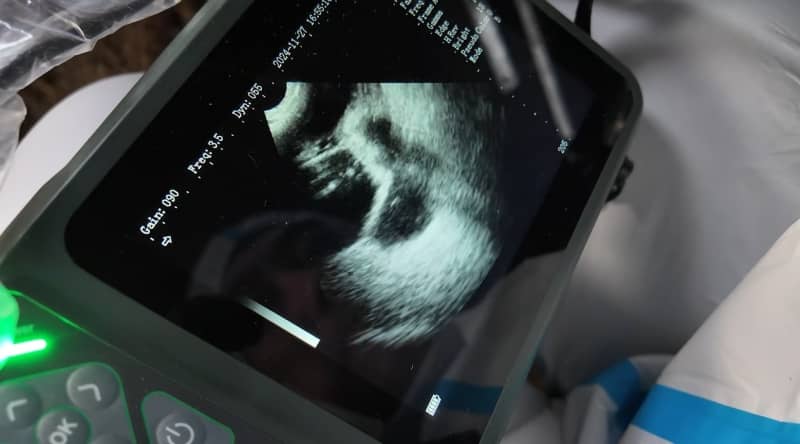

B-Mode Imaging & Display Modes

Get clear, stable B-mode veterinary ultrasound images with flexible display options:

Imaging modes: B, B+B, 4B, BM, M
Image mirror tools: left-right mirror and up-down flip
Display magnification: 16 modes
Display depth: up to 221 mm

This makes Elite a reliable handheld livestock ultrasound for fast decisions during pregnancy scanning.

Elite supports cine replay ≥256 frames, allowing continuous playback or frame-by-frame review to confirm key findings during swine and sheep pregnancy checks.

Workflow benefits:

Review quickly after scanning
Compare frames to reduce missed observations
Improve on-farm efficiency for large herds

Cine Loop & Storage

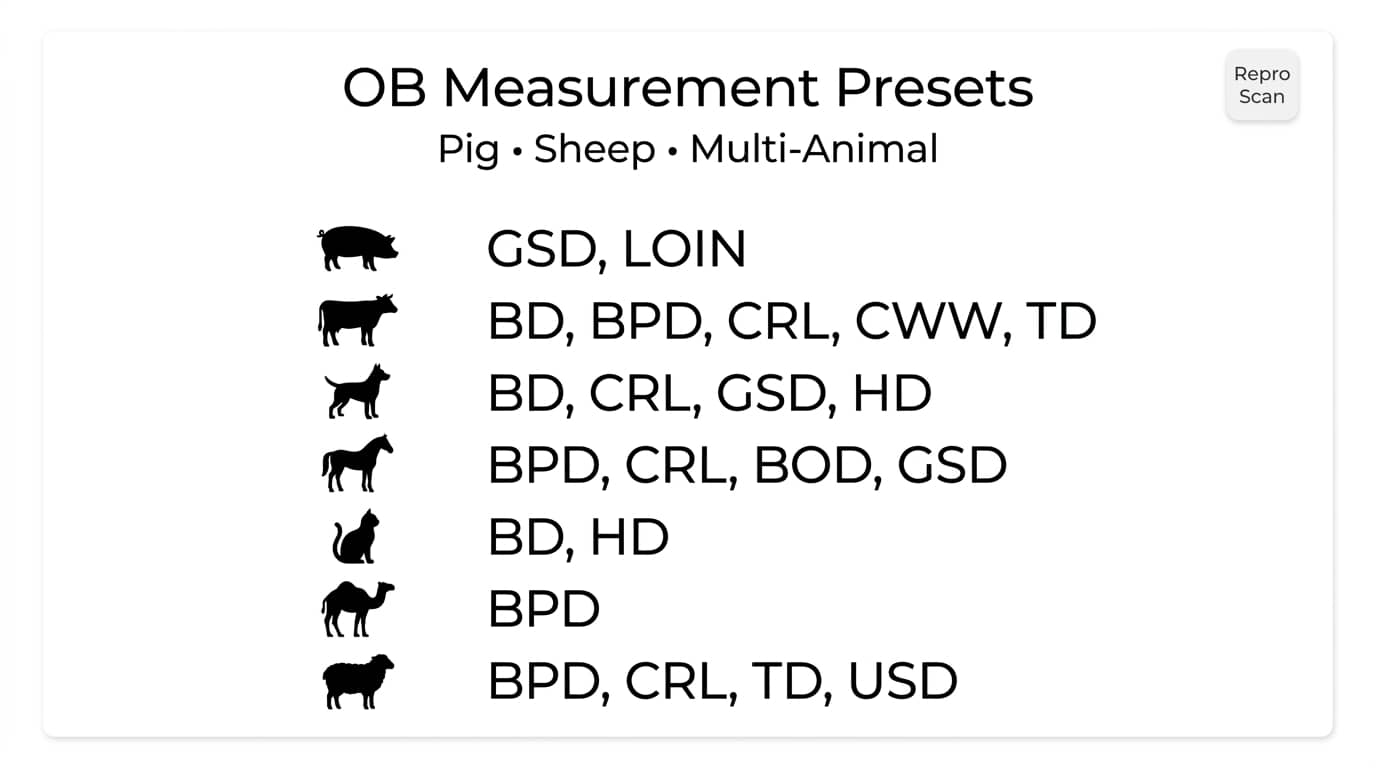

OB Measurements (Multi-Animal)

Elite provides obstetric measurement presets and common measurements for veterinary reproduction work.

General measurements: distance, circumference, area

Obstetric measurements (built-in presets):

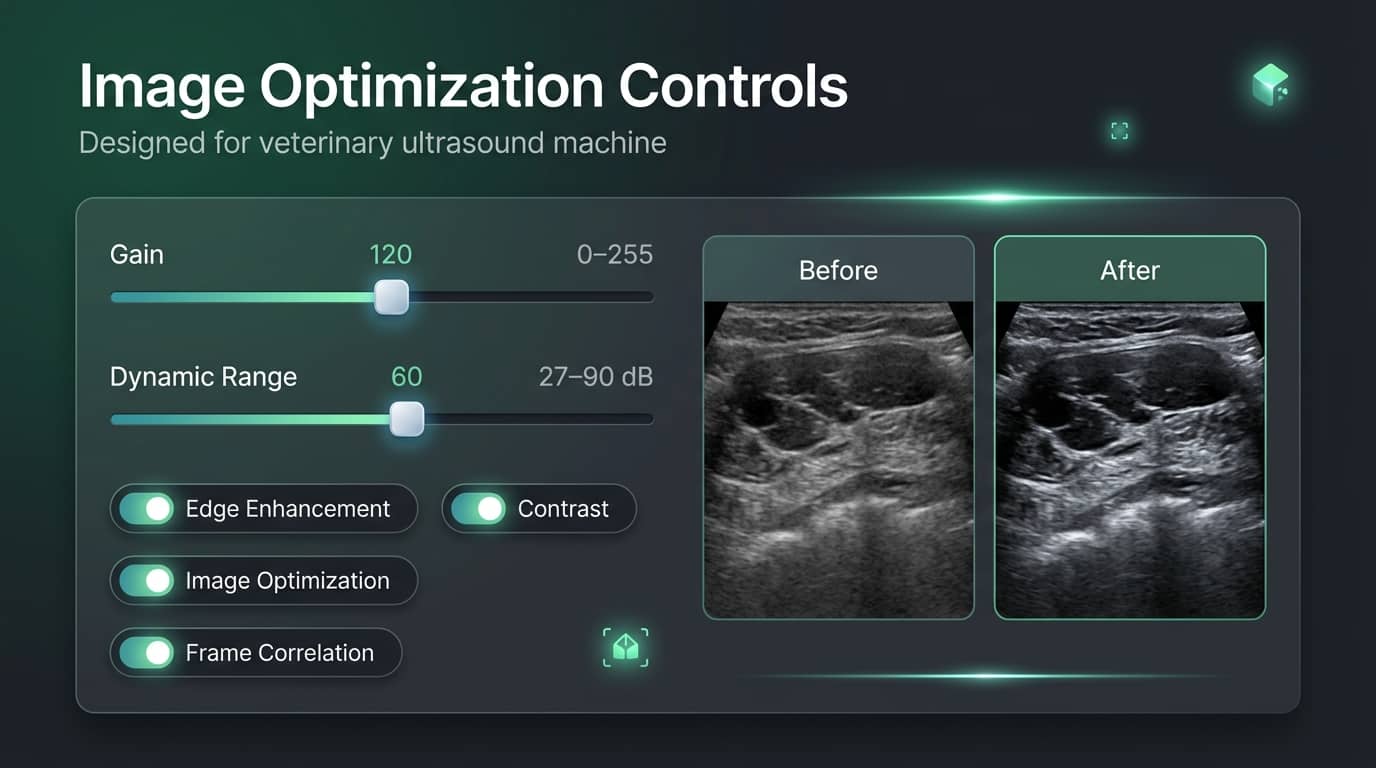

Image Optimization Controls

256-level gain (0–255)

Dynamic range:27–90 dB

Image processing controls:

Post-processing (0–3)
Frame correlation (0–3)
Edge enhancement (0–3)
Color (0–23)
Image optimization (0–12)
Contrast (0–63)

Interfaces & Practical Functions

Ports / interfaces:

USB port
Probe port
Charging port
Video port

Other functions:

Puncture guidance
Parameter restore
Grid

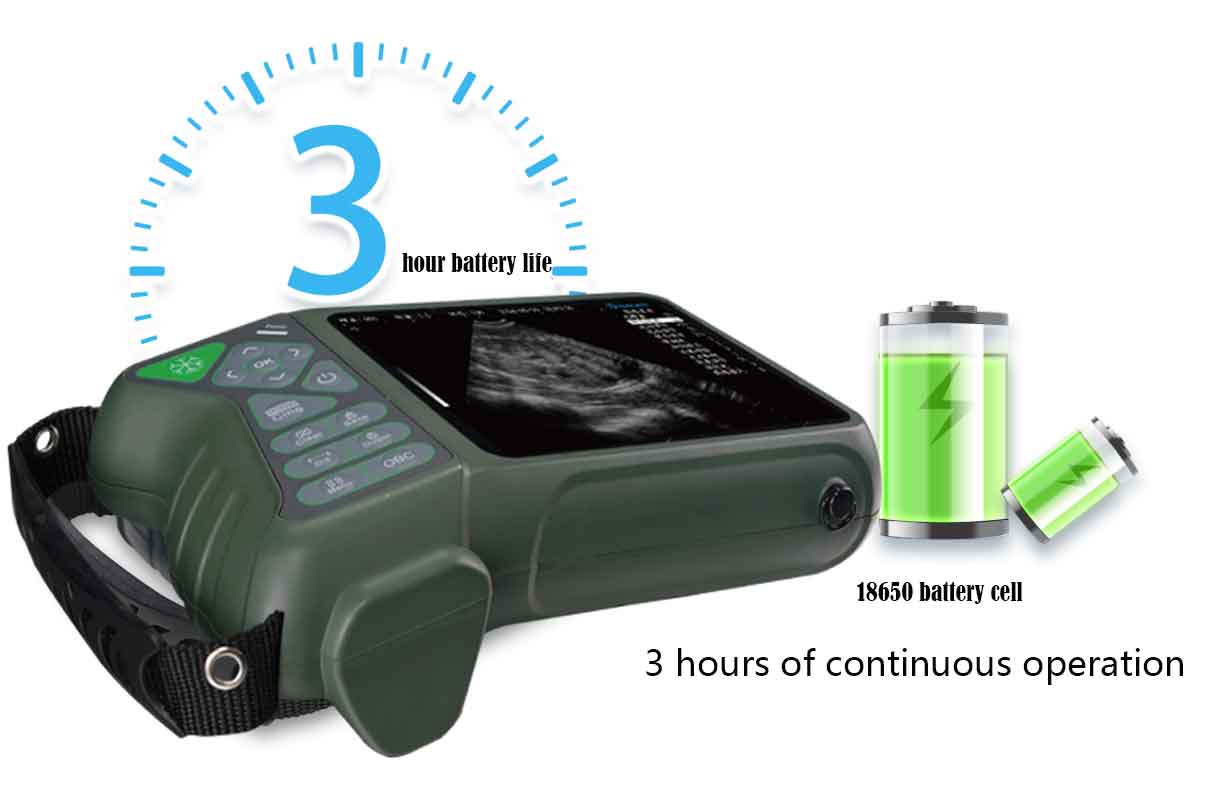

Battery & Mobility

This handheld veterinary ultrasound uses a replaceable rechargeable Li-ion battery:

Replaceable rechargeable Li-ion battery (default 2600mAh)
Working time: ~3 hours (optional 5200mAh for ~6 hours)
Battery level indicator + charging indicator

Size & Weight

Main unit size: 224 × 71 × 155 mm (L × W × H)
Main unit weight: ~850g (with optional larger battery ~970g)

Technical Specifications Table

Item	Specification
Display	5.6-inch LED medical display
Scan method	Mechanical sector scan
Display modes	B, B+B, 4B, BM, M
Body markers	≥50
Image mirror	Left-right mirror, up-down flip
Cine loop	≥256 frames
Storage	Built-in 4GB + USB flash drive support
Gain	256 levels (0–255)
Dynamic range	27–90 dB
Depth	221 mm
Ports	USB, probe, charging, video
Other	Puncture guidance, parameter restore, grid
Battery	2600mAh (~3h); optional 5200mAh (~6h)
Size	224 × 71 × 155 mm
Weight	~850g (optional battery ~970g)

FAQ

Q1: Is Elite livestock reproduction ultrasound scanner suitable for swine and sheep pregnancy checks?

A: Yes. Elite s designed for livestock farm workflows and supports obstetric measurement presets including swine and sheep.

Q2: What imaging modes does it support?
A: B, B+B, 4B, BM, and M modes.

Q3: Can I review and export images?
A: Yes. It supports cine replay (≥256 frames), built-in 4GB storage, and USB export to a flash drive.

Q4: How long does the battery last?
A: About ~3 hours with the default 2600mAh battery, or ~6 hours with the optional 5200mAh battery.

Q5: What measurements are included?
A: General measurements (distance, circumference, area) and OB presets for multiple animals (including pig and sheep).
