Portable Pet Infusion Pumps Veterinary IV Infusion Pump for Hospital

AIP-200

The AIP-200 Veterinary Infusion Pump by Dawei Veterinary Medical offers accurate drug delivery, touchscreen control, and multi-mode compatibility. Ideal for clinics and emergency care. Explore features like KVO rate adjustment, alarms, and long-lasting battery.

Inquiry Now Download as PDF

Product Detail

Applications

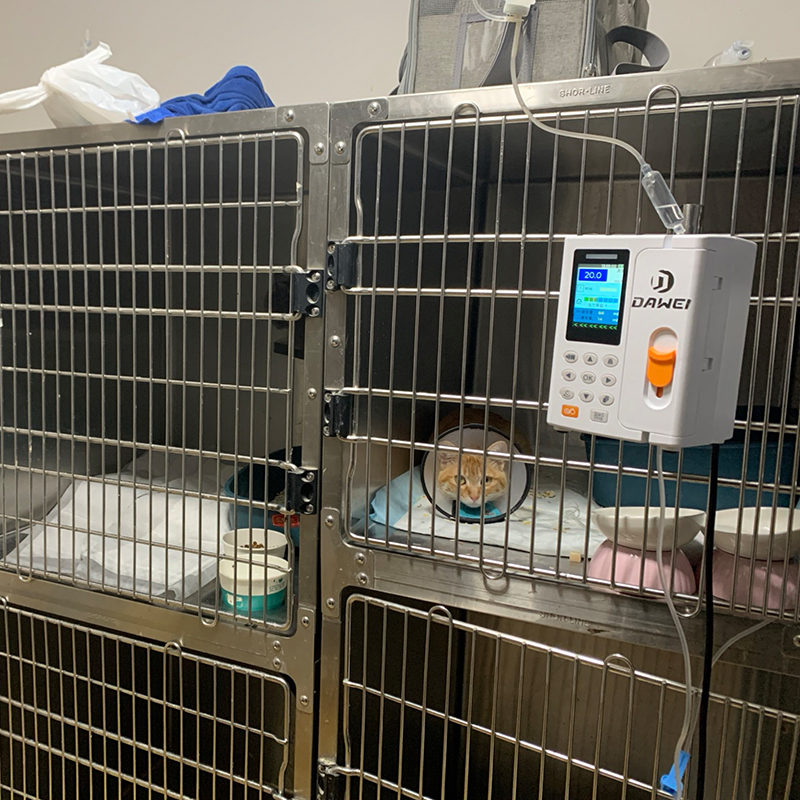

The AIP-200 Infusion Pump is designed for veterinary clinics, hospitals.

Performance

1.Accurate Fluid Control

Flow Rate Range: 0.1–1200 mL/h (±5% accuracy).
Adjustable KVO Rate (0.5–5 mL/h or off) to reduce catheter occlusion risks.
Multiple Modes: Time-based, speed-based, and drip-rate infusion options.

2. Safety and Monitoring

Bubble Detection: Configurable sensitivity (50–800 µL) to identify air in lines.
Pressure Alerts: 8 adjustable occlusion thresholds (60–130 kPa) for safer operation.
Alarm System: Audible and visual notifications for blockages, low battery, or completed infusions.

3.Intuitive Operation

2.8-inch Color Touchscreen: Easy-to-navigate interface for parameter adjustments.
Compact Design: Lightweight (128×112.5×183.5 mm) for portability and space efficiency.
Rapid Setup: ≤8-second startup time for urgent scenarios.

4.Broad Compatibility

Works with most infusion sets and brands.
Dual-language interface (Chinese/English).

5.Extended Battery Life

Built-in 1800mAh battery supports up to 5 hours of continuous use.

6.Efficient Priming

Fast priming mode (1200 mL/h) minimizes preparation time.

Specification

Applicable infusion sets	Various brands of infusion sets, disposable 20 drops/mL Infuser diameter: 3.4~4.5mm
Infusion mode	Time mode, speed mode, drip mode
Infusion speed setting range	0.10 ml/h ~1200 ml/h increment 0.1ml/h
To-be-infusion volume setting range	0.1- 10000 ml; 0.1-9999.9 mlin increments of 0.1 ml/h
Infusion time setting range	00:00:01~99:59:59, increment 1s
Rapid push speed	1200ml/h
Exhaust speed	1200ml/h
Infusion accuracy	±5%
Clearance rate	1200ml/h
KVO rate Available	0.5ml/h, 1ml/h, 2ml/h, 3ml/h, 4ml/h, 5ml/h or closed
Occlusion pressure	60kpa, 70kpa, 80kpa, 90kpa, 100kpa, 110kpa, 120kpa, 130kpa
Bubble detection Minimum bubble volume	50ul, 100ul, 250ul, 500ul, 800ul
Power supply AC power supply	100--240 V, 50/60 Hz; external DC power supply: 7.4 V
Battery Internal rechargeable lithium	ion battery, 1800mAh.
