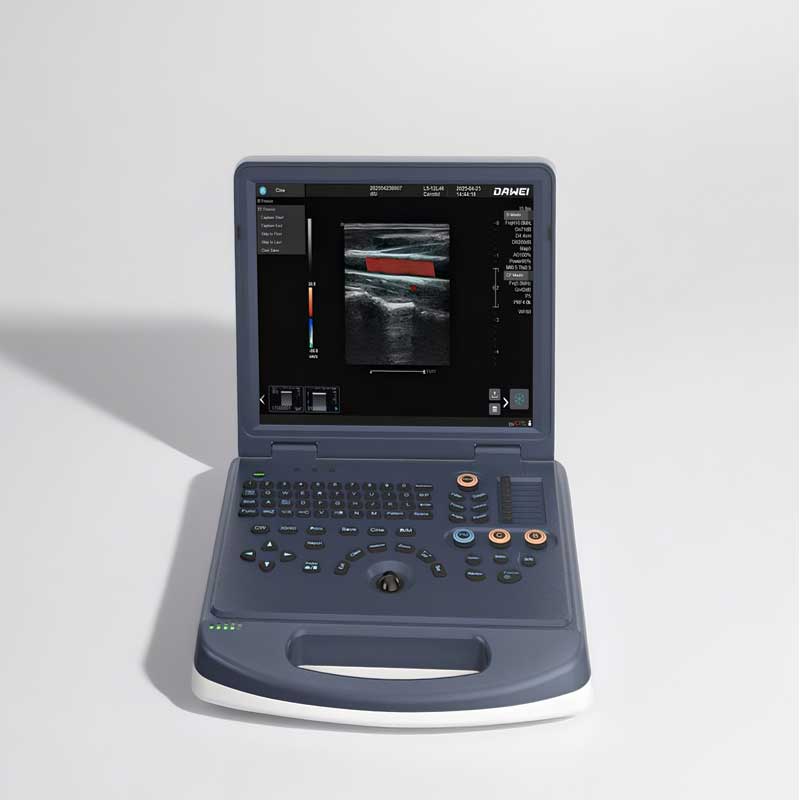

Designed for veterinary clinics, animal hospitals, and mobile vets, the L30i Pet Ultrasound Scanner is a portable color Doppler system optimized for dogs, cats, and small animals. It merges laptop-style ergonomics with workflow-driven presets, delivering fast, reliable bedside imaging for abdominal, cardiac, vascular, reproductive, and superficial exams. Below is a structured overview of how it helps clinicians work smarter and diagnose with confidence.
Product Highlights & Core Technology
This section focuses on the L30i’s imaging performance, usability, and veterinary-specific features.
Portable and Easy to Use
- Laptop-style all-in-one design with a ≥15″ display for comfortable long reads and teaching.
- Windows 10 system for fast boot, broad compatibility, and on-site upgrade capability.
- Integrated clipboard and cine review (≥600 frames) to revisit cardiac and vascular sequences and mark key frames quickly.
- Smart presets tailored for abdominal, OB/reproduction, urinary, superficial, vascular, pediatrics/young pets, and general exams.
- Multi-language interface (Chinese/English/French/Russian/Spanish) for diverse teams and training.
Imaging & Doppler Capability
- 2D imaging: spatial compound imaging and tissue harmonic imaging for better contrast and edge clarity; 2B/4B split views; up to 6 fully movable focal points.
- Color/Power/Directional Power Doppler: sensitive visualization of low-velocity blood flow and direction, useful for perfusion and tumor vascularity.
- Spectral pulsed Doppler: angle correction (-80° to 80°), sample volume 0.5–20 mm, and velocity scales covering typical cardiac and peripheral flows.
- Real-time tri-sync and trapezoidal imaging: maintain usable windows in tight anatomy and narrow acoustic access.
- One-touch auto optimization: intelligent tuning of gain, dynamic range, TGC, and color maps to reach diagnostic image quality fast.
Probe Portfolio for Small Animals
- Convex probe (2.0–5.5 MHz, eight-step frequency): ideal for medium-to-large dogs, deep abdominal organs, and pregnancy monitoring.
- Linear high-frequency probe (6.0–12.0 MHz, six-step frequency): perfect for cats and small dogs’ superficial structures (thyroid, lymph nodes, mammary, tendons) and peripheral vessels.
- Endocavitary probe (4.5–9.0 MHz, seven-step frequency): suited for reproductive and pelvic examinations where clinically appropriate.
Image Controls & Visualization
- Fine control: gain 0–100 (step 2), 8-segment TGC, dynamic range 20–280 dB, 11-level color maps; on-screen real-time display of 14 adjustable parameters (e.g., power, frequency, grayscale).
- ≥80 body position markers to standardize documentation across species and views.
- Multiple display layouts and synchronized B/C split-screen for structural and flow correlation.
Measurements & Analysis
- General tools: distance, area, angle, time, heart rate, velocity, slope, acceleration.
- Veterinary analysis: spectral tracing with auto PS/ED, RI/PI, S/D, HR for kidneys, portal vein, mammary lesion perfusion, and cardiac outflow assessments.
- Customization: choose measurement line colors/types and result display position/font size to improve readability and teaching.
- Reporting: ≥16 report templates, one-click image-text reporting, and built-in record management with searchable IDs/names/dates.
Storage, Connectivity, and Compliance
- ≥128 GB SSD for fast boot and robust local storage.
- Image formats: BMP/DCM/JPEG; DICOM 3.0 and PACS integration for standardized archiving and teleconsultation.
- I/O: six USB ports, HDMI, RJ-45 for peripherals, exporting, and classroom projection.
- Certifications: ISO45001 (occupational health & safety) and ISO14001 (environmental management), supporting institutional procurement standards.
Clinical Use Cases for Dogs, Cats, and Small Animals
Practical scenarios that show how the L30i fits everyday veterinary workflows.
Abdominal and Reproduction
- Liver, spleen, kidneys, GI tract: harmonics and compounding enhance lesion conspicuity and ductal anatomy; color/power Doppler aids perfusion and portal flow evaluation.
- Pregnancy monitoring: convex probe for gestational staging, fetal heart, litter size, and placental perfusion; one-touch optimization speeds bedside exams.
Urinary and Reproductive System
- Bladder, prostate, uterus, ovaries: spectral Doppler provides hemodynamic clues for differentiating inflammation, hyperplasia, and neoplasia.
- Endocavitary views offer higher-resolution pelvic assessment where indicated.
Cardiac and Peripheral Vascular
- Chambers, valve motion, and flow: tri-sync plus spectral Doppler supports baseline functional assessment; robust velocity scales and angle correction stabilize measurements.
- Peripheral vessels and portal vein: power Doppler highlights low-flow signals in small-bodied pets and superficial vasculature.
Superficial and Musculoskeletal
- Thyroid, mammary glands, lymph nodes, tendons: linear high-frequency probe delivers crisp texture and microvascular detail for pre-op planning and follow-up.
Why Choose L30i
Translating specs into daily clinical and operational benefits.
- True portable color Doppler built for veterinary practice: balances image quality with mobility for clinic and on-site care.
- Workflow efficiency: rich presets, fast reporting, integrated clipboard—shorter exam-to-report cycle.
- Broad probe coverage: deep and superficial imaging across organs, vessels, and reproductive assessments.
- Data longevity: DICOM/PACS-ready for compliant archives, second opinions, and remote collaboration.
- Training-friendly: visualized parameters, body markers, and customizable measurement display support onboarding and case teaching.
