In modern animal husbandry, ultrasound machines for cattle have become a central tool for pregnancy detection, reproductive disease diagnosis and fetal development monitoring. The probe serves as the “eye” of the ultrasound equipment, and the choice of probe plays a crucial role in obtaining accurate and effective imaging results, especially for large animals like cattle.
Ⅰ Structural and Imaging Differences

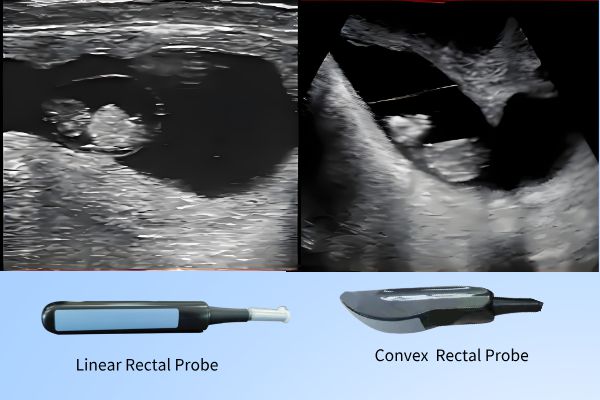

Linear Rectal Probe:
Emits parallel ultrasound beams in a straight line.
Provides a rectangular field of view, making it ideal for shallow and high-resolution imaging.
Typically operates at higher frequencies (e.g., 5-7.5 MHz), which enhances image resolution but limits penetration depth.
Commonly used in bovine reproductive examinations, especially for early pregnancy diagnosis and ovarian structure assessment.
Convex (Curved) Rectal Probe:
Emits beams in a curved pattern, producing a sector-shaped field of view.
Operates at lower frequencies (e.g., 3.5-5 MHz), allowing deeper penetration suitable for large or deep abdominal organs.
More useful for general abdominal scans, late pregnancy checks, or examination of internal structures where depth is essential.
Ⅱ Application Scenario Selection Suggestions
1. Selection by detection stage
Early pregnancy (25-45 days): Prioritize the line array probe to ensure clear imaging of the embryo and corpus luteum.
Middle and late pregnancy (more than 60 days): Convex probe can show complete fetal development and fetal position.
2. Diagnostic needs by disease
Reproductive diseases: Linear head is used for the diagnosis of ovarian cysts, endometritis and other small lesions.
Complex cases: Convex head probe combined with wire array probe to realize multi-angle scanning of the whole pelvis.
3. By operator experience
Novice users: Convex probe is recommended to reduce the operation difficulty and improve the detection efficiency.
Professional veterinarians: line array probe combined with convex head probe to build a dual diagnostic system of “precision + wide-area”.
Ⅲ Global Research and Veterinary Standards
Several international institutions have studied and published findings on the use of ultrasound in cattle.
University of Wisconsin–Madison (USA): Their Department of Dairy Science emphasizes the use of linear rectal probes for early pregnancy detection in dairy cows. Research shows that linear probes improve accuracy when scanning small ovarian follicles or early embryonic vesicles, contributing to more efficient herd reproduction management.
University of Guelph (Canada): The Ontario Veterinary College conducted a comparative study on the efficacy of rectal linear vs. convex probes in beef cattle. The study concluded that while both probe types are effective, linear probes yielded higher diagnostic confidence in early-stage examinations.
Royal Veterinary College (UK): A 2021 research paper examined ultrasound training programs for bovine practitioners and found that the cattle ultrasound machine equipped with interchangeable probes (linear and convex) significantly improved students’ diagnostic skills by offering different perspectives during practical sessions.
CSIRO (Australia’s Commonwealth Scientific and Industrial Research Organisation): Their ongoing livestock innovation programs integrate veterinary ultrasound technology to monitor fertility, health, and fetal growth in cattle. They highlight that selecting the correct probe based on anatomy and diagnostic goals increases scanning efficiency and animal welfare.
Ⅳ Choosing the Right Cattle Ultrasound Machine
Veterinarians should consider machines that offer:
Multi-probe compatibility (especially linear and convex rectal probes).
Rugged, portable design suitable for fieldwork.
Long battery life, clear imaging, and easy user interface.
Many modern veterinary ultrasound machines now come with AI-assisted features, auto-measurements, and touch-screen interfaces to support both novice and experienced bovine practitioners.
Conclusion
The difference between the linear rectal probe and the convex rectal probe in a cattle ultrasound machine lies in imaging depth, resolution, and diagnostic purpose. Veterinarians should select the appropriate probe based on clinical needs, whether for high-resolution reproductive scanning or deeper abdominal imaging. Research from global veterinary institutions continues to shape best practices in bovine ultrasound, reinforcing the importance of probe selection in achieving precise and effective veterinary care.
