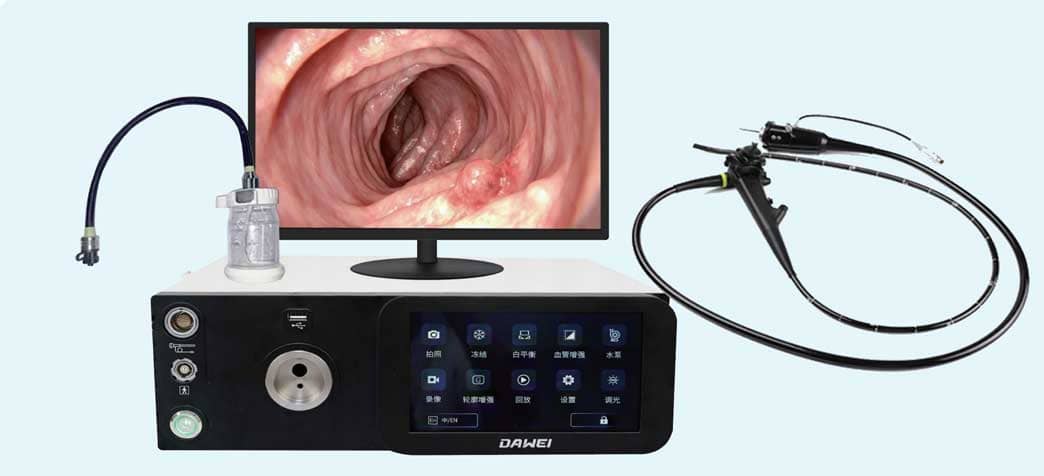

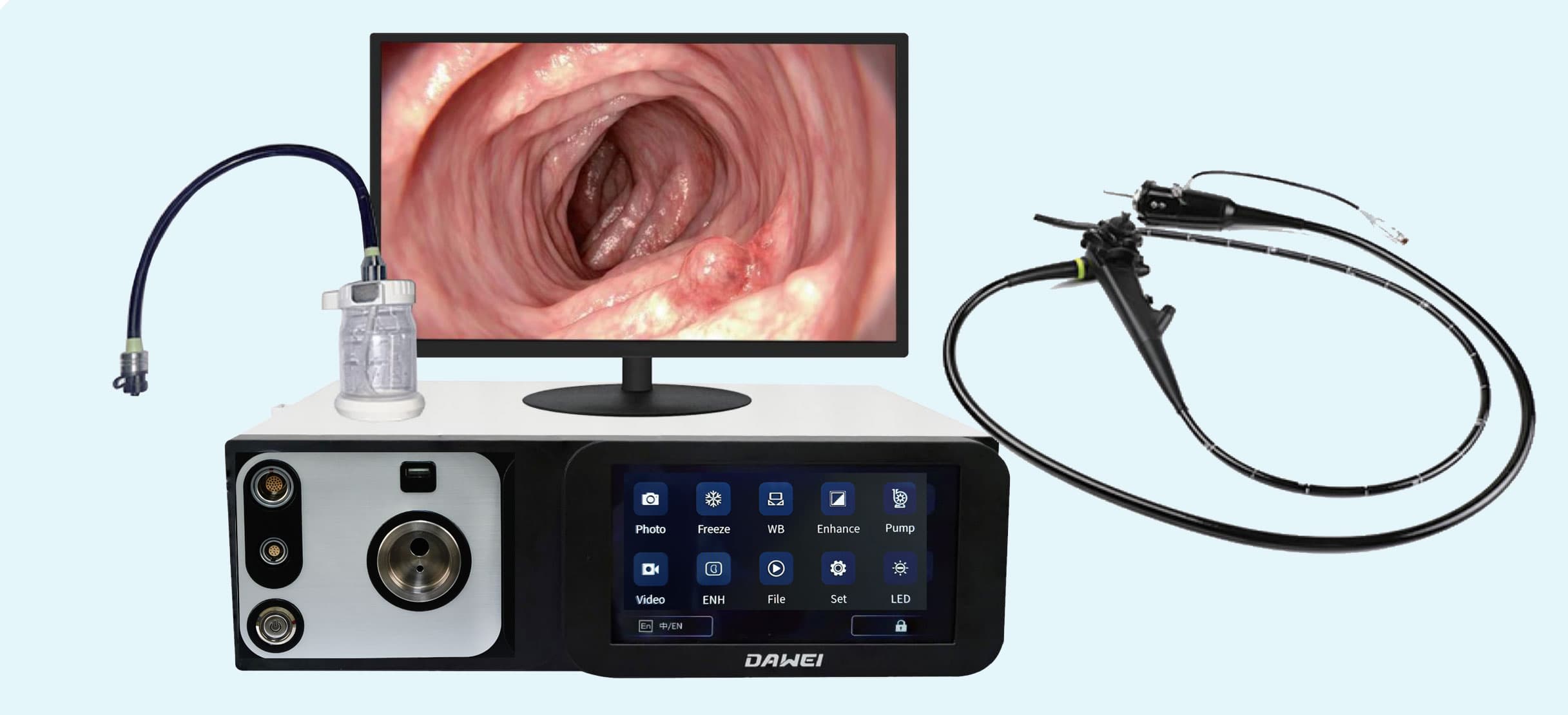

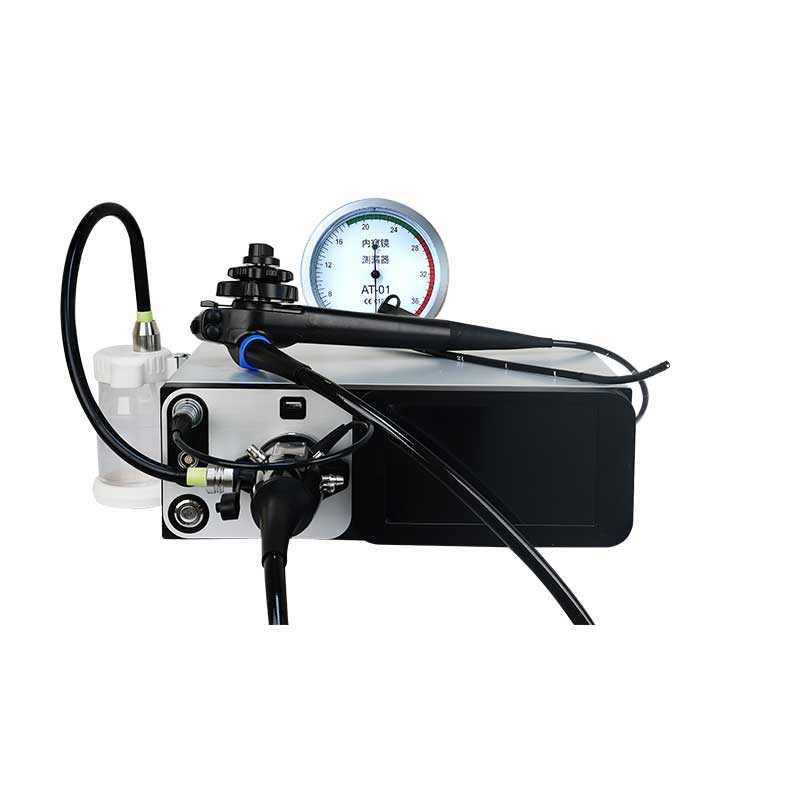

Veterinary endoscopy system for animal internal examination

AEG-200

The AEG-200 Veterinary Endoscope System is a high-definition, full-digital imaging solution designed for precise and safe animal diagnostics. Equipped with advanced image processing, flexible maneuverability, and durable waterproof construction, it ensures veterinarians can perform minimally invasive examinations and procedures with clarity and confidence.

Inquiry Now Download as PDF

Product Detail

Applications

Gastrointestinal examination for large and small animals
Respiratory tract inspection (bronchoscopy)
Ear, nose, and throat examinations (otoscopy, rhinoscopy)
Reproductive tract diagnostics
Minimally invasive surgeries and biopsies
Clinical use in horses, cattle, dogs, cats, pigs, sheep, camels, birds, and exotic animals

Performance

1.High-Definition Endoscope

Applicable to All Clinical Departments;

1920×1200 resolution with vivid detail; supports multiple HDMI/DVI output resolutions;

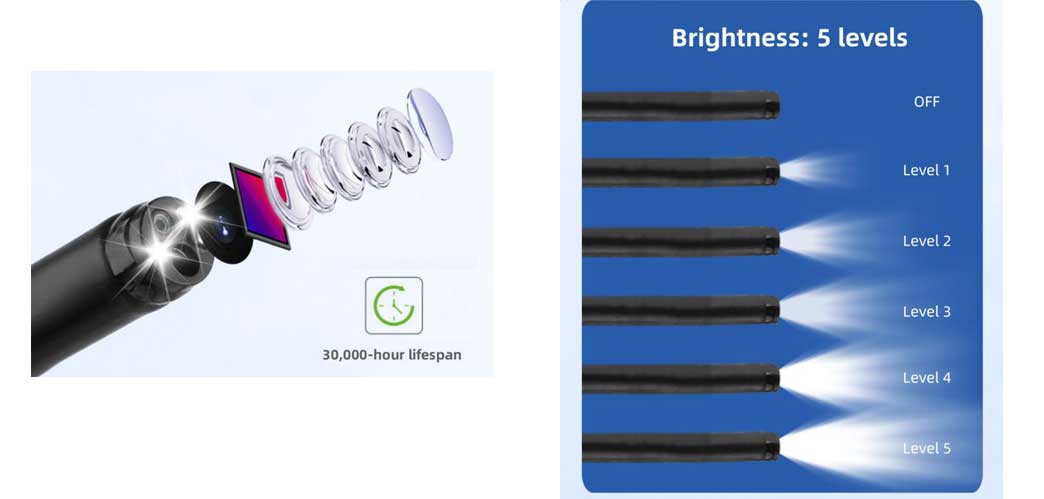

2. Dual LED Light Source

Five adjustable brightness levels for optimal visibility.

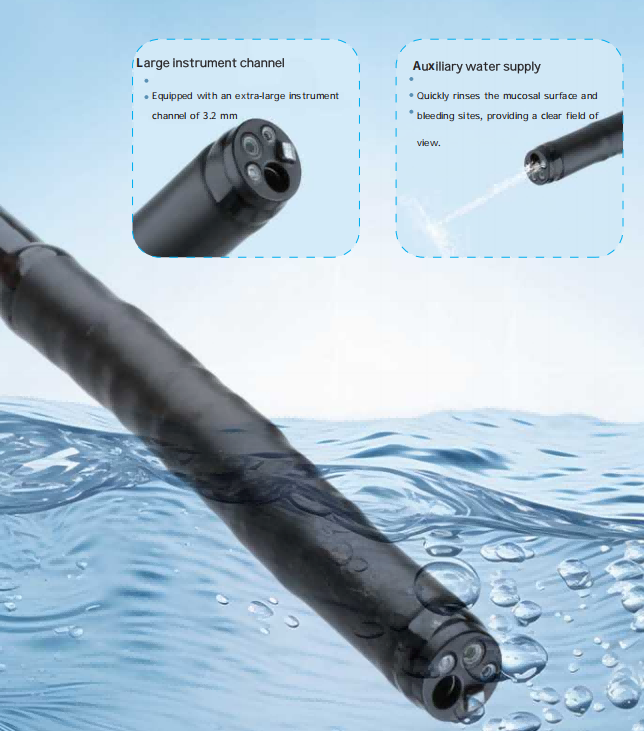

3.IP67-rated HD waterproof lens

The veterinary endoscope lens is internally sealed with special materials, making it waterproof, oil-resistant, and corrosion-resistant.

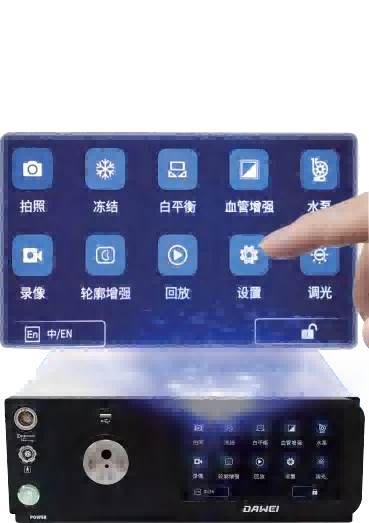

4.Touchscreen Operation

Highly sensitive, user-friendly 1080P display.

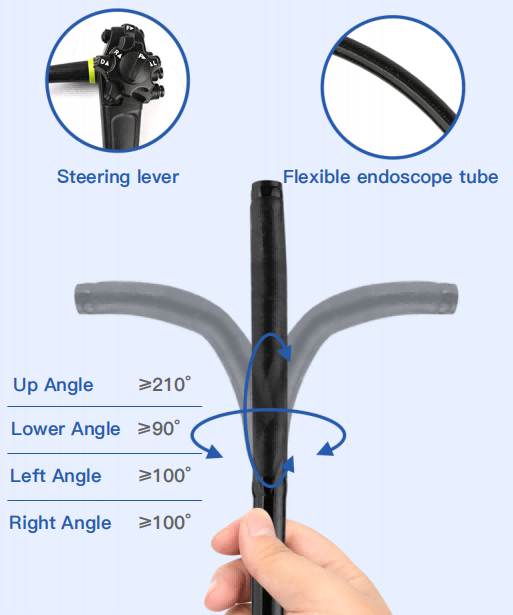

5.360° all-round steering without blind spots

Flexible 360-degree lateral rotation Eliminates visual blind spots effectively

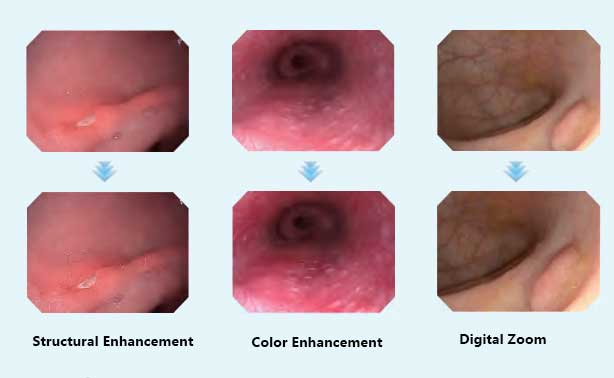

6.Vision Clarity for Confident Diagnosis

High-definition digital signals combined with structural enhancement and color enhancement technologies ensure every image is crystal clear.

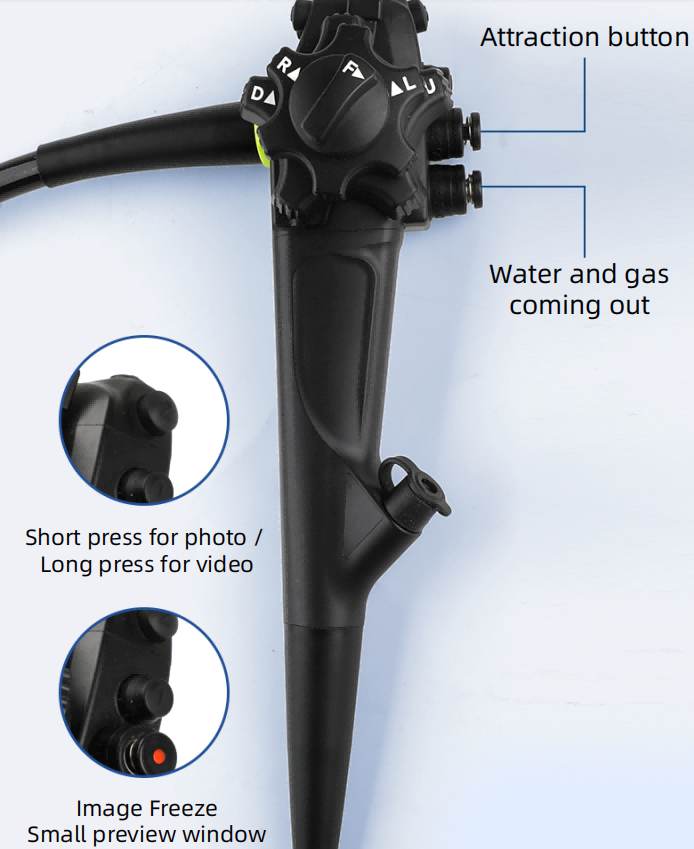

7.Lightweight handpiece with optimal grip comfort

Superior handling for effortless operation Newly upgraded for exceptional stability Intuitive button layout enables precise and convenient control

Product Specifications

Product Name: Veterinary Endoscope Main Unit
Waterproof Rating: IP67
Viewing Angle: 360° full rotation

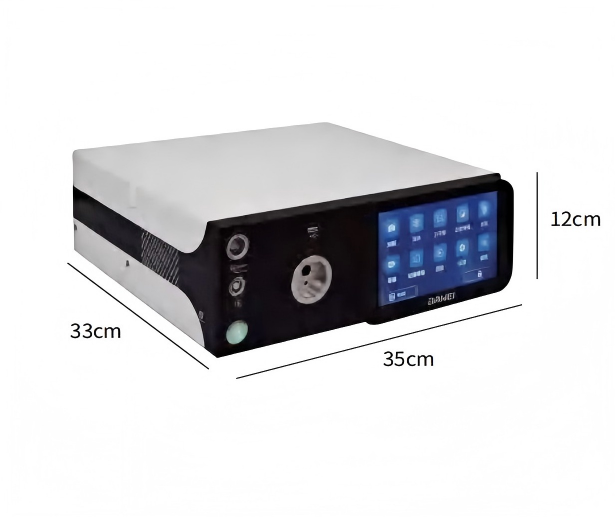

Main Unit Dimensions: 35 cm × 33 cm × 12 cm
Package Contents: Endoscope + Main Unit + USB Drive, Power Connection Cable + HDMI High-Definition Cable, User Manual, Warranty Card

Mirror body parameters：

Product Name	External Diameter (mm)	Forceps Channel Diameter (mm)	Working Length (mm)	Field Angle (°)	Depth of Field (mm)	Up/Down/Left/Right (°)
8828	8.8	2.8	1500	140	3-100	210/90/100/100
6020	6	2	1000	140	3-100	210/90/100/100
1330	12.8	3.8	3000	140	3-100	180/180/160/160
3006	3	1	600	120	3-100	180/180
