Sheep Farms

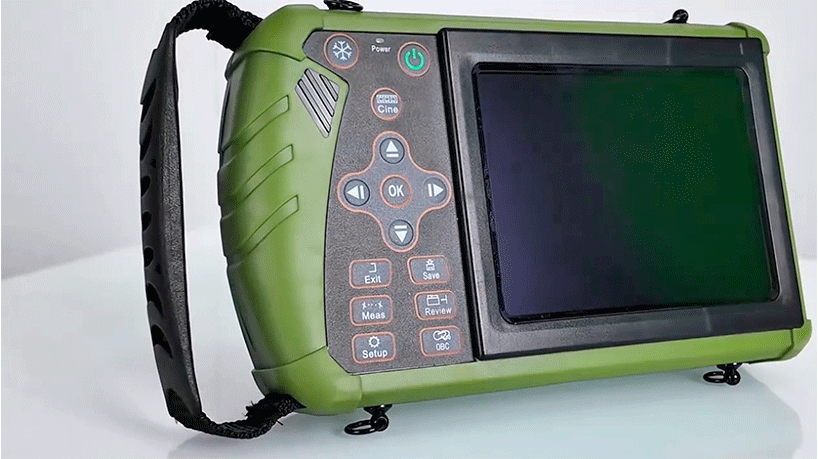

The S0 handheld veterinary ultrasound diagnostic machine is specifically designed for livestock ultrasound needs. It offers a compact, lightweight body while delivering high-clarity imaging for reproductive assessments. Here are the key reasons it’s highly recommended for sheep farmers:
✅ 1. Compact & Farm-Ready Design
5.6-inch LED medical-grade display, easy to view under sunlight.
Weight: Only 900g – ultra-light for handheld operation in field conditions.
Rechargeable lithium battery (2600mAh), allows 3 hours of continuous scanning.
Ideal for outdoor or mobile use on farms.
✅ 2. Optimized for Sheep Pregnancy Scanning
Built-in obstetric measurement presets for sheep:
BPD (Biparietal Diameter), CRL (Crown-Rump Length), TD (Trunk Diameter), USD (Uterus Size Diameter).
Quick image capture and 256-frame cine loop for easy replay or freeze-frame analysis.
Scanning depth: 126–307 mm, suitable for both thin and thick-bodied ewes.
✅ 3. Accurate Imaging & Adjustable Settings
3.5MHz mechanical sector probe – ideal for transabdominal sheep pregnancy checks.
Multi-frequency selection (2.0–5.0 MHz) supports image tuning based on ewe body size.
256-level grayscale, dynamic range up to 135 dB, and advanced image processing:
Gamma correction
Edge enhancement
Pseudo-coloring
Image zoom modes
Enables clear differentiation of gestational sacs and fetal landmarks.
✅ 4. Easy Data Storage & Sharing
Built-in 8GB memory + USB port:
Save, browse, and transfer images directly.
Supports English/Chinese interface, with date, time, gain, frequency, and OB data displayed for each scan.
Applications Beyond Sheep
While the S0 excels in sheep pregnancy scanning, it also includes obstetric modes for 8 animals:
Cattle, pigs, horses, goats, dogs, cats, camels, and sheep
Great choice for mixed-animal farms or mobile veterinary services
Example Use Case: Sheep Pregnancy Scan
A typical transabdominal sheep scan process using S0:
1.Time of scan: 30–45 days post-mating
Scanning probe: 3.5 MHz mechanical sector probe
Position: Right side of the lower abdomen
Target structures: Fluid-filled gestational sac, fetal heartbeat, number of embryos
Recording: Use cine loop or freeze-frame to analyze and save images.
Why Choose the S0 for Sheep Farm Use?
|
Feature |
Benefit |
| Light & Portable | Perfect for daily farm rounds |
| Sheep OB Presets | Accurate, fast pregnancy measurement |
| Long Battery Life | Field-ready with 3+ hours of operation |
| Multi-species Support | Great for diversified farms |
| Affordable & Reliable | Cost-effective for small to medium farms |
Ready to Upgrade Your Sheep Farm with the S0?
If you’re looking for a cost-effective, portable, and professional ultrasound scanner for sheep, the S0 model is your reliable solution. Contact us to request a product demo, price quote, or expert consultation today!
Post time: Jul-03-2025
