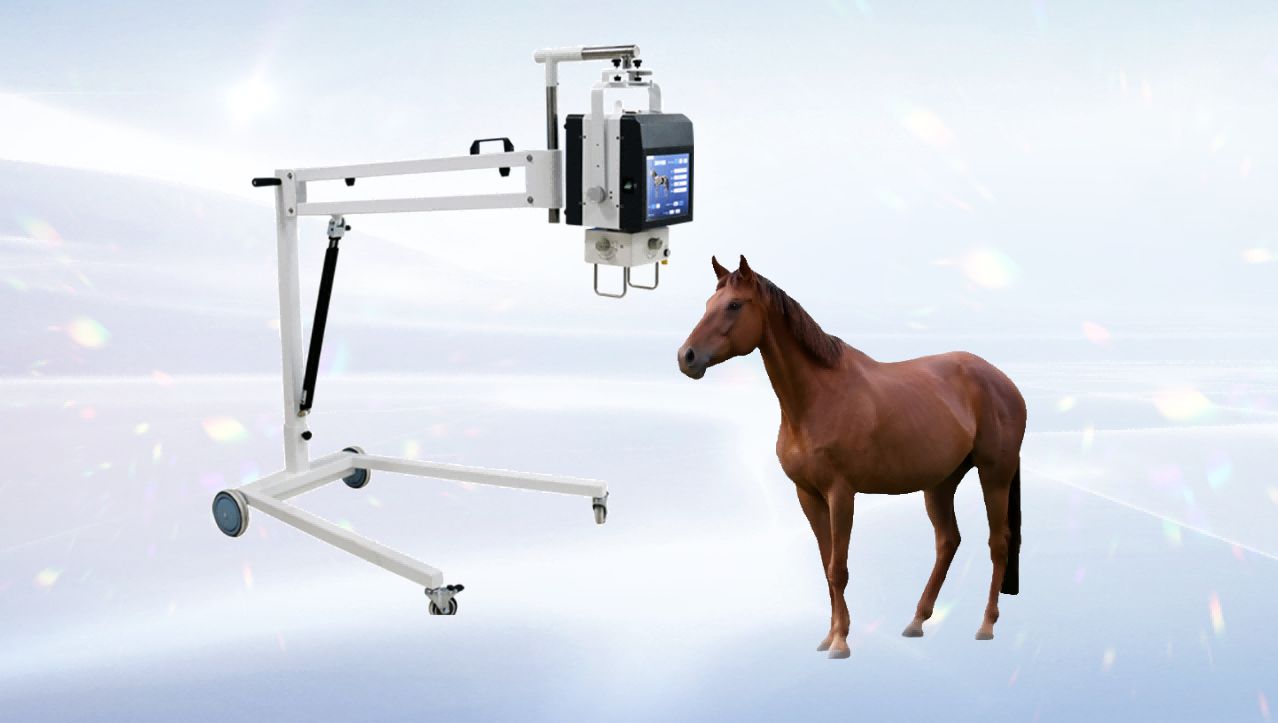

Animal Portable Digital X-ray System
RV-5C
Performance
The RV-5C Portable Digital X-ray System is designed for veterinary clinics, mobile pet hospitals, and livestock farms, providing high-quality imaging for:
- Small/Large Animals: Dogs, cats, horses, cattle, etc.
- Emergency & Field Diagnostics: Lightweight and portable for on-site examinations.
- Orthopedic & Soft Tissue Imaging: Clear visualization of fractures, tumors, and internal conditions.
The RV-5C integrates advanced components for precise and efficient imaging

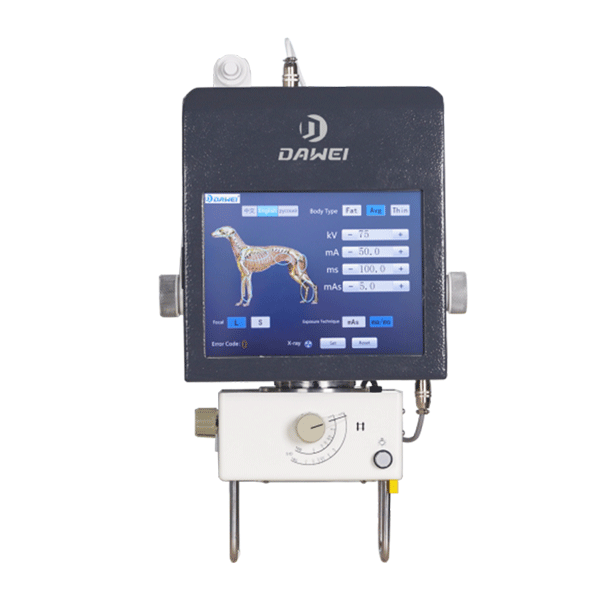

1.Portable X-ray Generator
High Power Output: 5.3kW with adjustable 40–125kV and 0.1–200mAs.
Dual Focal Spots: 0.6mm (small) / 1.8mm (large) for detailed or broad-area scans.
Tungsten Target & 15° Angle: Enhances image clarity while reducing scatter.

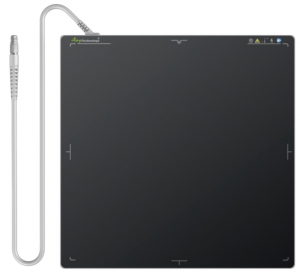

2. Flat Panel Detector
- Large Imaging Area: 17"×17" (404mm×404mm) for versatile positioning.
- High Resolution: 139µm pixel size, 16-bit ADC, and 3.6 lp/mm spatial resolution.
- Fast Processing: Preview in 3s, full image in 5s.
3. Manual Mobile Stand
Adjustable Height: 920–1950mm (±5%) for flexible patient positioning.
360° Rotation: Effortless multi-angle imaging.

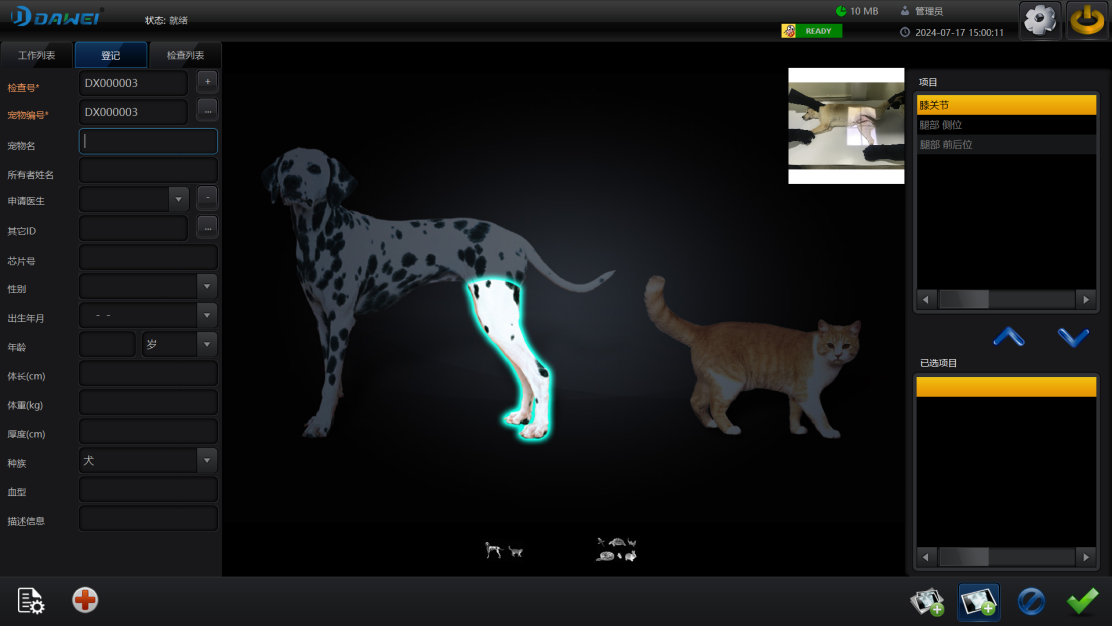

4.Dawei Veterinary DR Software
- User-Friendly Interface: Supports image capture, DICOM transfer, and printing.
- APR Database: Stores up to 2,000 preset protocols for streamlined workflows.
Product Configuration
| No. | Configuration Item | Model | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Portable X-ray Generator | DF-5 | 1 Set | - |
| 2 | Flat Panel Detector | DT-V4343Y | 1 Set | Wired Detector |
| 3 | Manual Mobile Stand | DZ-SY100 | 1 Set | - |
| 4 | Dawei Veterinary DR Imaging Software | / | 1 Set | Includes license key |
Clinical Images
