For swine pregnancy detection in Denmark, the most practical buying criteria are image modes + obstetric measurements, portability & battery life, cine-loop replay, storage/export, and image tuning controls (gain/dynamic range/near–far adjustment). If you want a lightweight field unit with solid replay + archiving and pig-focused measurement presets, Elite is a strong “workhorse” option.
Who this guide is for
- Danish pig farms doing routine pregnancy checks and batch management
- Mobile veterinarians or breeding service teams doing on-site scanning
- Anyone who needs image archiving for training, traceability, or reporting
Note: Timing protocols vary by farm and veterinary guidance. This article is product/selection guidance, not medical advice.
What to look for (Denmark swine pregnancy ultrasound checklist)
- Scan method & image modes: Common B-mode combinations (B / M / BM, etc.) for fast scanning and confirmation.
- Cine loop / replay: The ability to review key frames without re-scanning.
- Storage & export: Built-in storage, USB/flash drive export, and on-device review.
- Image adjustment depth: Gain steps, dynamic range, near/far field tuning, edge enhancement.
- Measurements: Basic (distance/circumference/area) + swine-related obstetric presets.
- Portability & battery: Weight, ergonomics, hot-swappable battery options.
- Interfaces: USB, video-out, probe and charging ports for workflow flexibility.

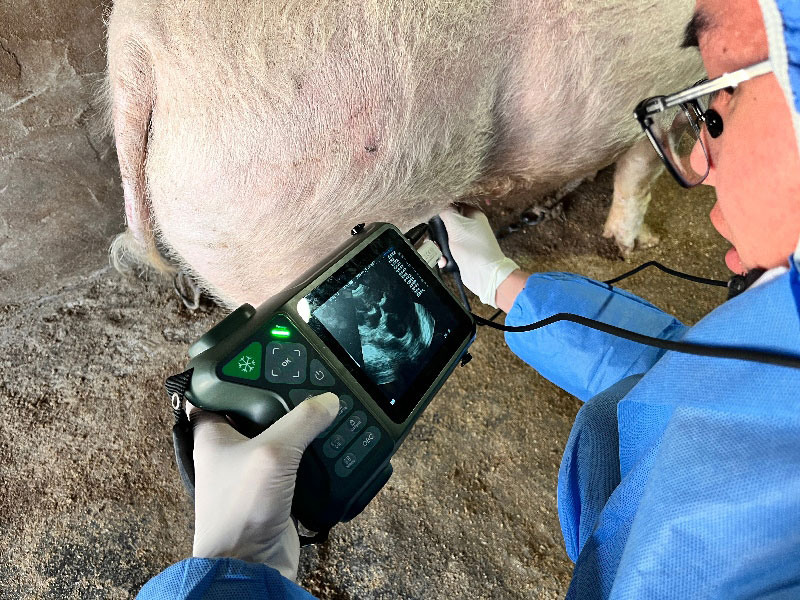

Featured choice: Elite— practical specs for on-farm pregnancy checks
The specs below are extracted from the technical document you provided (Veterinary Ultrasound Technical Parameters).
Key specifications table
| Category | Elite (from technical specs) | Why it matters for swine pregnancy detection |
| Display | 5.6-inch medical LED display | Clear viewing in variable barn lighting; practical field size |
| Scan method | Mechanical sector scan | Common, fast workflow for field scanning |
| Display modes | B, B+B, 4B, BM, M | Supports typical scanning and review modes |
| Body marks | ≥50 | Helps standardize technique and training |
| Image flip/mirror | Left-right mirror, up-down flip | Adapts to different scanning approaches |
| General measurements | Distance, circumference, area | Useful for recording basic findings |
| Obstetric measurements | 7 animals; Pig: GSD, LOIN | Pig-focused presets support reproduction management records |
| Electronic focus | 4-stage electronic focus, adjustable | Improves clarity at different depths |
| Cine loop | ≥256 frames; continuous or frame-by-frame | Quick confirmation, training, and traceable review |
| Storage | Built-in 4GB + USB drive; on-device viewing; copy to USB | Easy archiving, training materials, and data sharing |
| Gain | 256 levels (0–255) | Fine control for different body conditions |
| Dynamic range | 27–90 dB | Helps balance contrast vs. tissue detail |
| Post-processing | Post process, frame correlation, edge enhancement, optimization, contrast, color, flips | Makes the device more adaptable to real-world conditions |
| Display depth | 221 mm | Covers common depth needs (actual depends on probe & body condition) |
| Display magnification | 16 display modes | Flexible viewing preferences |
| Near/Far field adjust | Near: -31–0; Far: 0–31 | Quick tuning for near-field noise and deep attenuation |
| Other functions | Needle guide, parameter restore, grid | Useful for broader veterinary workflows |
| Ports | USB, probe, charging, video | Export + external display + maintenance flexibility |
| Battery | 2600mAh (~3h); optional 5200mAh (~6h); removable rechargeable Li-ion | Better for mobile scanning days; swap batteries if needed |
| Size/weight | 224×71×155 mm; ~850g (optional big battery ~970g) | Lightweight for long scanning sessions |
Buying guidance for Danish farms & vets
1) Large-scale farms: prioritize speed + traceability
- Look for: cine loop (≥256 frames), built-in storage + USB export, strong gain/dynamic range controls.
- Reason: high throughput, staff rotation, and QA/training all benefit from archiving and replay.
- Look for: <1 kg device, removable battery, at least ~3 hours field runtime (or extended battery option).
- Elite W10 match: ~850g, removable battery, optional larger battery.
- USB + flash drive matters for fast handoff and building a training library.
- Video-out is useful for on-site demos and training on a larger screen.
2) Mobile vets: prioritize weight + battery strategy
3) Don’t overlook ports
FAQ
Q1: How early can pregnancy be detected by ultrasound in sows?
Protocols vary by farm, genetics, and veterinary guidance. Many farms use defined check windows and follow-up rechecks. Set a standard operating procedure with your local veterinarian.
Q2: Why does cine-loop frame count matter?
Higher cine-loop capacity helps you confirm key views without re-scanning, improving speed, consistency, and training outcomes.
Q3: Does Elite include swine-specific measurements?
Yes. It includes general measurements (distance/circumference/area) and obstetric presets covering multiple animals; for pigs it includes GSD and LOIN.
Q4: Can I export images for reporting or training?
Yes. Elite supports built-in 4GB storage, on-device review, and copying to a USB flash drive.
Q5: What if I need longer runtime for a full scanning day?
Elite supports a removable battery with ~3 hours typical runtime and an optional higher-capacity battery (~6 hours). Many teams also carry a spare battery.
